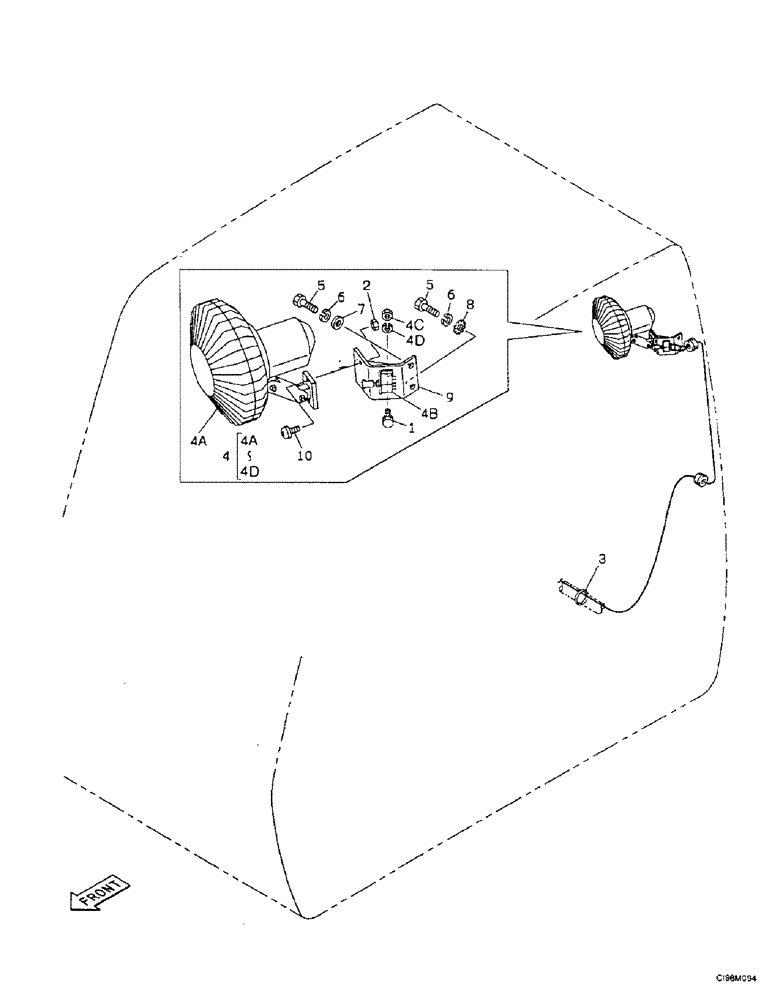

Запчасти Case 9007B (4-26) - VENTILATOR (04) - ELECTRICAL SYSTEMS

1

159602A1

BOLT,Sems, Hex, M6 x 16mm

Screw

1шт.

2

829-1405

NUT,M5, Cl 10

2шт.

3

150071A1

MOUNTING CLIP

1шт.

4

157689A1

FAN

Assy, Consists Of Ref. Numbers : 4A-4D

1шт.

4a

NSS

NOT SOLD SEPARAT

Fan

1шт.

4b

152843A1

IGNITION SWITCH

Selector

1шт.

4c

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

4d

892-11006

LOCK WASHER,M6

1шт.

5

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

892-11008

LOCK WASHER,8mm ID

2шт.

7

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

8

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

9

165744A1

BRACKET

Mount

1шт.

10

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

2шт.

11

892-11005

LOCK WASHER,M5

2шт.

12

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

13

159338A1

RESISTOR

Filter

1шт.
