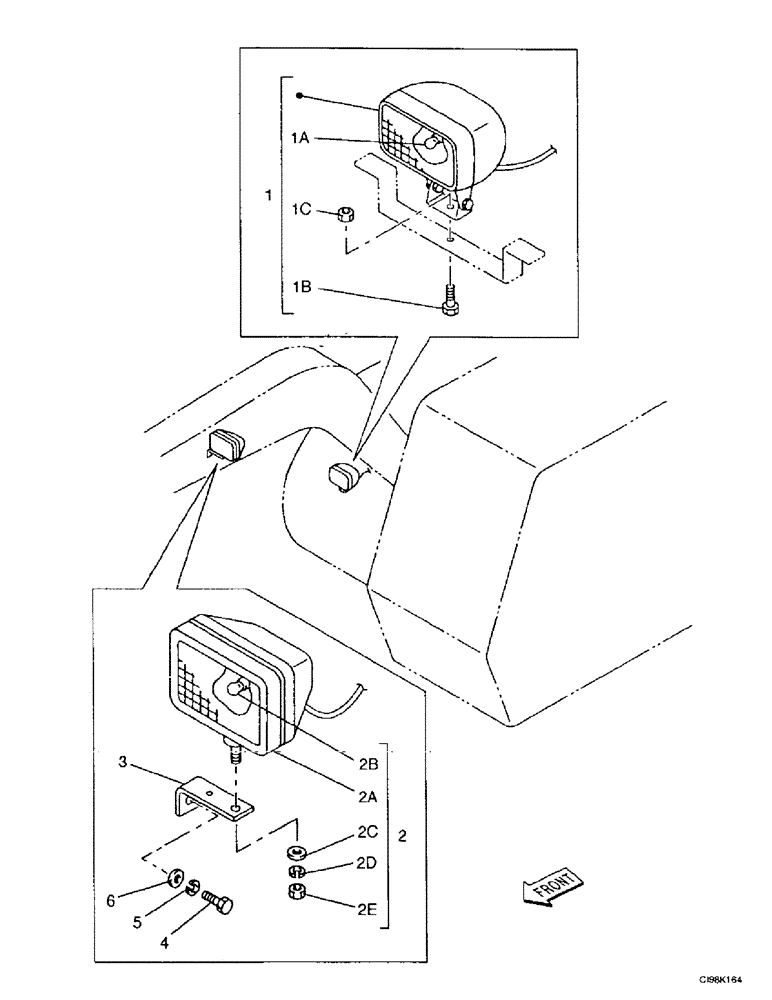

Запчасти Case 9007B (4-22) - LAMP, WORK - ATTACHMENT (04) - ELECTRICAL SYSTEMS

1

166385A1

LAMP, WORK

LIGHT, WORK Assy, Upperstructure Chassis Consists Of Ref. Numbers : 1A, 1B, 1C

1шт.

1a

152812A1

BULB

1шт.

1b

166386A1

BOLT

Screw

1шт.

1c

166387A1

NUT

1шт.

2

159598A1

PORTABLE LAMP

Assy, Attachment Consists Of Ref. Numbers : 2A-2E

1шт.

2a

159615A1

LIGHT

Lamp, Head

1шт.

2b

152812A1

BULB

1шт.

2c

896-11014

WASHER,15.5mm ID x 28mm OD x 3mm Thk

15.5 x 28 x 3 mm

1шт.

2d

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

Belleville 14 mm

1шт.

2e

829-1414

NUT,M14, Cl 10

M14; 10

1шт.

3

150834A1

BRACKET

Mount

1шт.

4

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

1шт.

5

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

1шт.

6

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.
