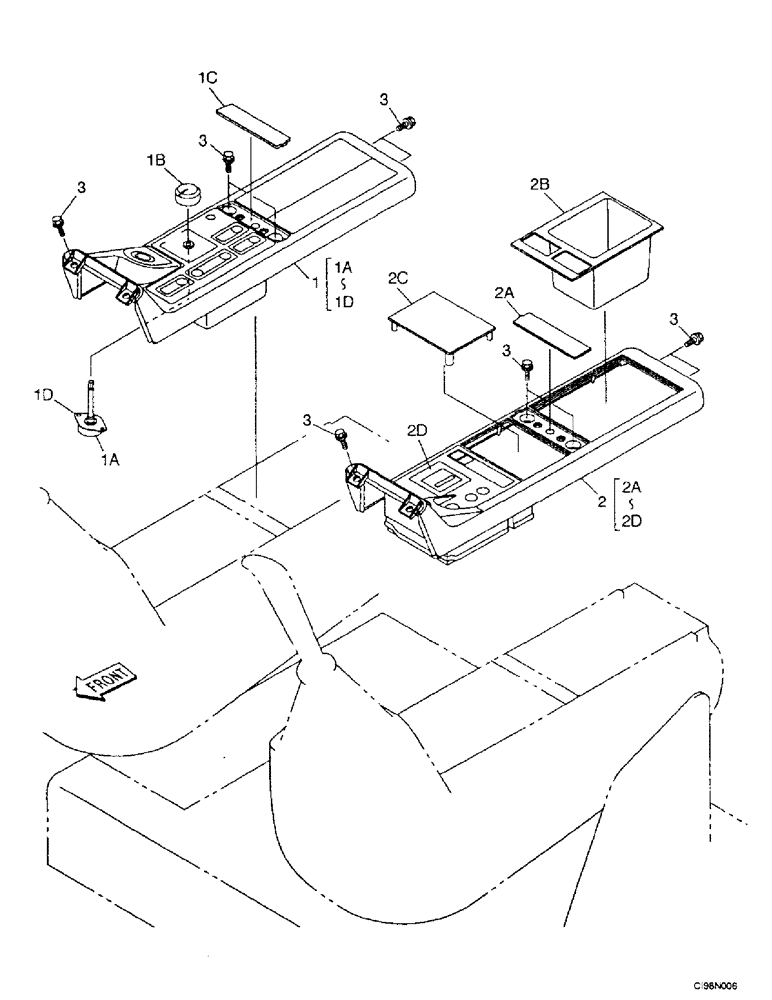

Запчасти Case 9007B (4-14) - FRONT INSTRUMENT PANEL - OPERATORS COMPARTMENT, HEATER (04) - ELECTRICAL SYSTEMS

1

167823A1

BRACKET

Panel, Instrument, Right Consists Of Ref. Numbers : 1A-1D

1шт.

1a

167900A1

SWITCH

Selector

1шт.

1b

159611A1

BUTTON

Button

1шт.

1c

159612A1

CAP

Cover Sheet

1шт.

1d

167901A1

PASTE

Plate

1шт.

2

168182A1

BRACKET

Panel, Instrument, Left Consists Of Ref. Numbers : 2A-2D

1шт.

2a

159613A1

CAP

Cover Sheet

1шт.

2b

167899A1

BOX

Tray, Storage

1шт.

2c

159936A1

COVER

Panel, Instrument

1шт.

2d

162271A1

HOURMETER

1шт.

3

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

Screw

12шт.
