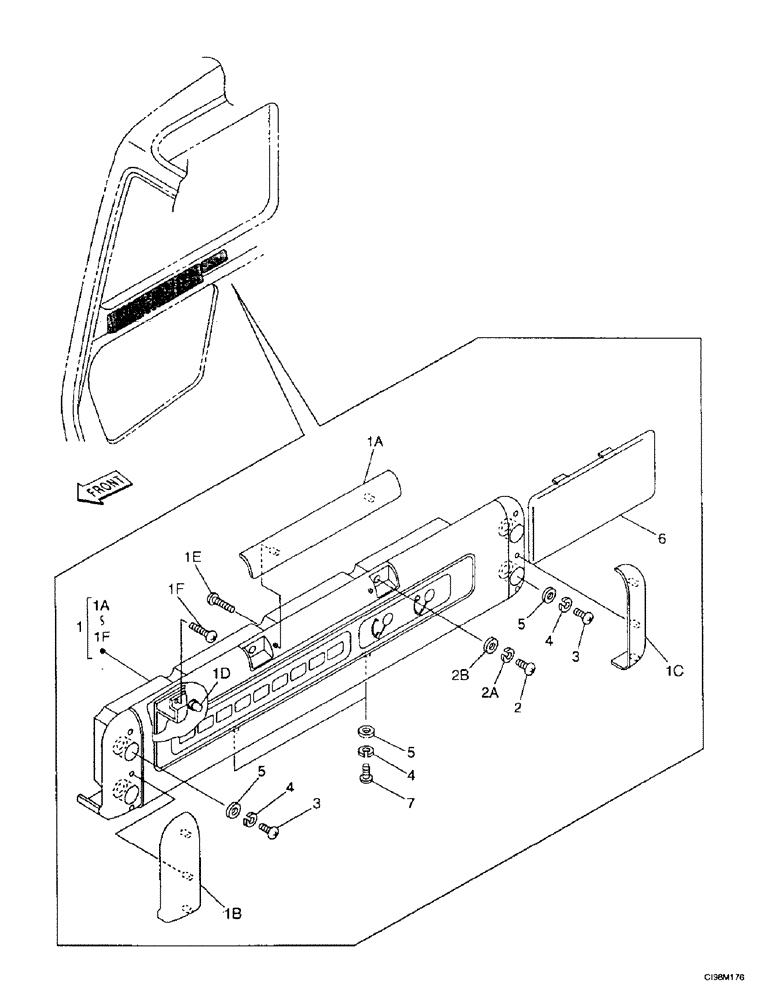

Запчасти Case 9007B (4-12) - SIDE INSTRUMENT PANEL CONSOLE (04) - ELECTRICAL SYSTEMS

1

166384A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Panel, Consists Of Ref. Numbers : 1A-1F

1шт.

1a

159219A1

CAP

Cover

1шт.

1b

159218A1

CAP

Cover

1шт.

1c

159236A1

CAP

Cover

1шт.

1d

166460A1

HEADLIGHT

Bulb

9шт.

1e

166461A1

SCREW

10шт.

1f

166462A1

SCREW

8шт.

2

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

2шт.

2a

892-11004

LOCK WASHER,M4

2шт.

2b

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

2шт.

3

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.

4

892-11005

LOCK WASHER,M5

6шт.

5

159601A1

WASHER

6шт.

6

159616A1

COVER

Sheet

1шт.

7

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

2шт.
