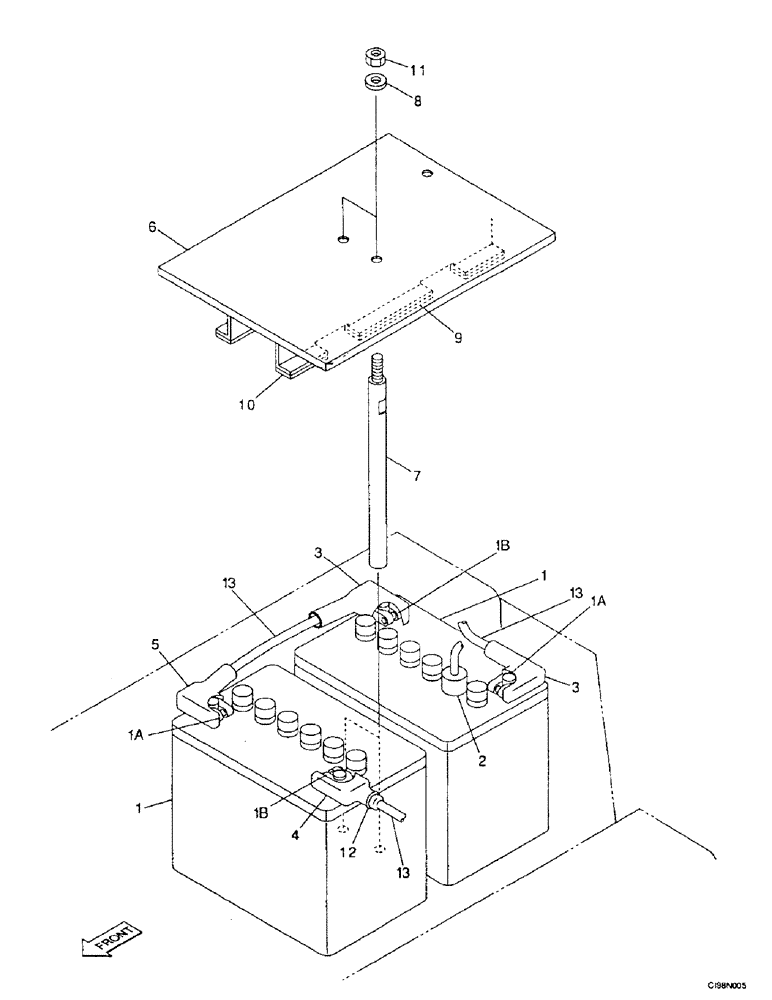

Запчасти Case 9007B (4-10) - BATTERIES (04) - ELECTRICAL SYSTEMS

1

168282A1

DRY BATTERY

2шт.

1a

158403A1

TERMINAL CONNECTOR

Connector

1шт.

1b

150455A1

TERMINAL CONNECTOR

Connector, Terminal

1шт.

2

168177A1

SENSOR

1шт.

3

166116A1

DUST CAP

2шт.

4

150366A1

CAP

1шт.

5

166117A1

DUST CAP

1шт.

6

167309A1

HOLDER

Plate

1шт.

7

167301A1

THREADED ROD

Rod, Truss

2шт.

8

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

9

167302A1

PAD

Seal

2шт.

10

167303A1

PAD

Seal

4шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

1шт.

13

REF

INSTRUCTION

Circuit, Electrical, See Figure : 4-6

1шт.
