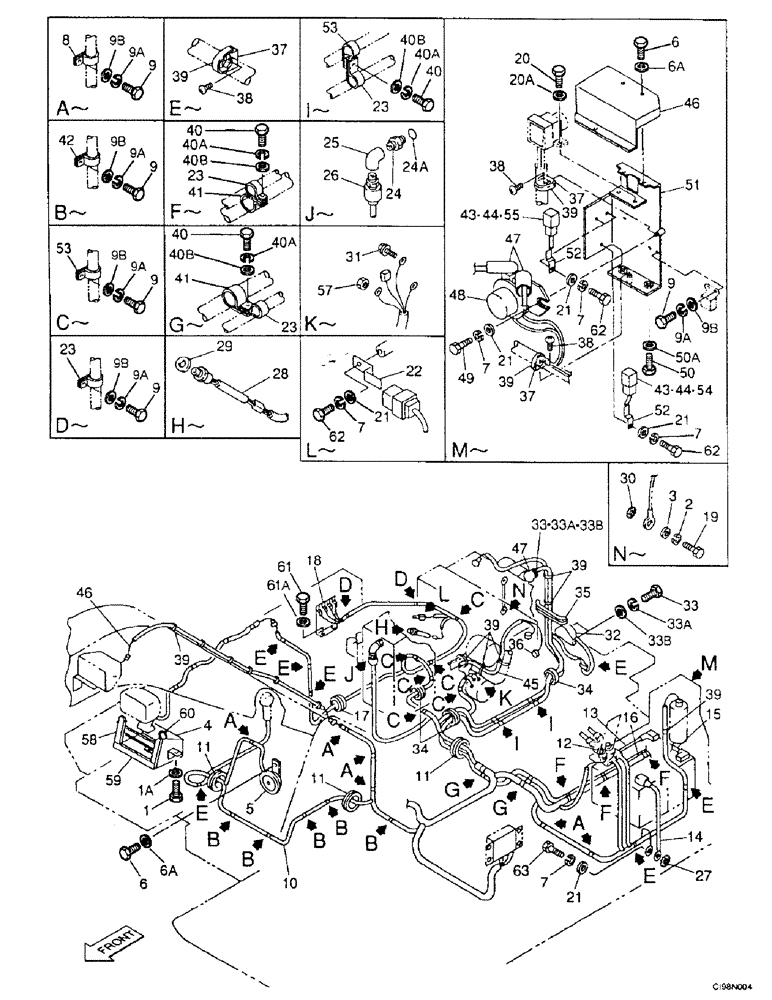

Запчасти Case 9007B (4-06) - ELECTRICAL CIRCUIT - UPPERSTRUCTURE CHASSIS (04) - ELECTRICAL SYSTEMS

1

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

1a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

2

892-11010

LOCK WASHER,M10

1шт.

4

167306A1

SUPPORT

Mount

1шт.

5

159949A1

HORN

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

6a

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

4шт.

7

892-11008

LOCK WASHER,8mm ID

3шт.

8

159150A1

COLLAR

Clip, Mounting

6шт.

9

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

21шт.

9a

892-11006

LOCK WASHER,M6

21шт.

9b

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

21шт.

9c

373162A1

RELAY

Shown without Ref #, Heating

1шт.

10

167311A1

HARNESS

1шт.

11

167262A1

GROMMET

3шт.

12

159599A1

PRESSURE SWITCH

2шт.

13

167275A1

CABLE ASSY.

1шт.

14

168170A1

CABLE ASSY.

1шт.

15

167276A1

CABLE ASSY.

1шт.

16

167277A1

CABLE ASSY.

1шт.

17

165984A1

GROMMET

1шт.

18

167279A1

BRACKET

Mount

1шт.

19

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

20

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

2шт.

20a

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

7шт.

22

158962A1

CLIP

1шт.

23

157806A1

COLLAR

Clip, Mounting

9шт.

24

152899A1

HYD CONNECTOR

Union, Consists Of Ref. Number : 24A

1шт.

24a

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

25

152943A1

ELBOW

90

1шт.

26

159899A1

PRESSURE SWITCH

pressure, upper pilot

1шт.

27

893-11008

LOCK WASHER,Ext Tooth, M8

3шт.

28

163658A1

THERMOSTATIC SWITCH

SWITCH - temperature, hydraulic oil

1шт.

29

159901A1

SEALING WASHER

1шт.

30

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

31

167280A1

BOLT,Spcl, M5 x 8mm

Screw

1шт.

32

162218A1

ALARM

Travel

1шт.

33

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

2шт.

33a

892-11006

LOCK WASHER,M6

2шт.

33b

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

34

167261A1

GROMMET

3шт.

35

166326A1

GROMMET

Guard

1шт.

36

167331A1

SENSOR

Probe, Controls the water temperature gauge function.

1шт.

37

150860A1

COLLAR

Base

9шт.

38

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10.9

9шт.

39

D150798

STRAP

Clip, Mounting

30шт.

40

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

7шт.

40a

892-11006

LOCK WASHER,M6

7шт.

40b

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

7шт.

41

159024A1

COLLAR

Clip, Mounting

5шт.

42

153039A1

CLAMP

Clip, Mounting

5шт.

43

159904A1

COVER

Sheet

3шт.

44

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Clip, Mounting 15 in

4шт.

45

167288A1

HARNESS

1шт.

46

167274A1

HARNESS

1шт.

47

162212A1

TERMINAL CONNECTOR

5шт.

48

167334A1

RELAY

Battery

1шт.

50

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

50a

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

51

167312A1

BRACKET

Support

1шт.

52

158963A1

CLIP

3шт.

53

156462A1

COLLAR

Clip, Mounting

8шт.

54

159902A1

FUSE

65A fuse - starter

1шт.

55

167330A1

FUSE

2шт.

56

167305A1

COVER

Sheet

1шт.

57

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

58

167307A1

SEAL

2шт.

59

167308A1

SEAL

1шт.

60

159656A1

GROMMET

1шт.

61

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

61a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

62

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

4шт.

63

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

49

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
