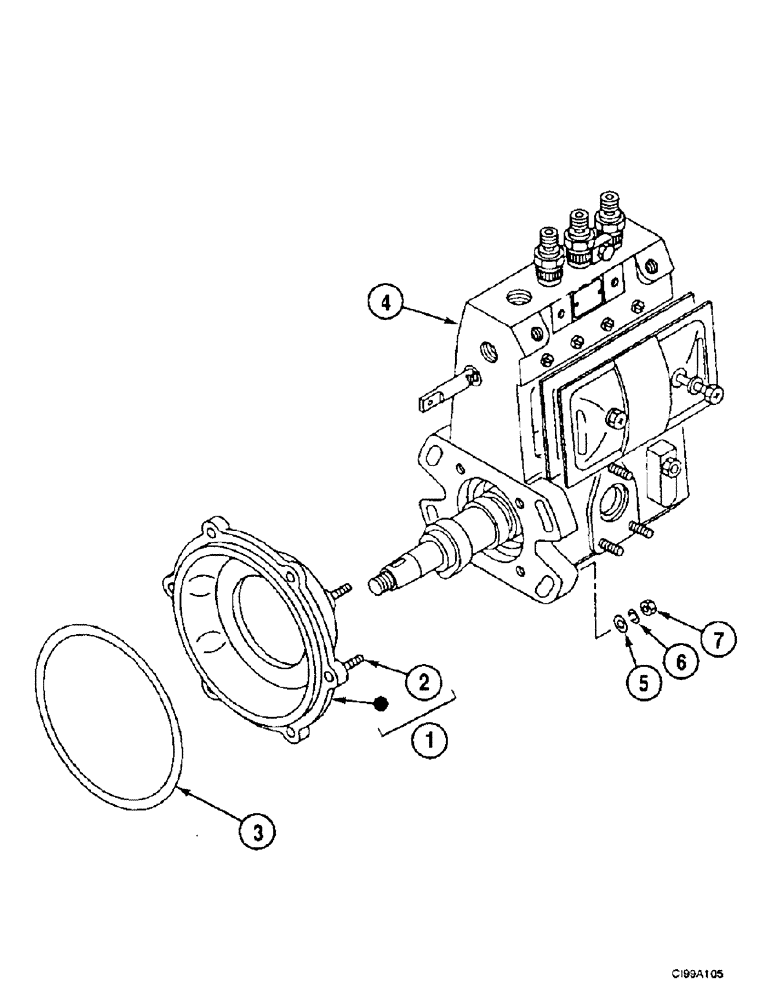

Запчасти Case 9007B (3-28) - FUEL INJECTION PUMP AND DRIVE (03) - FUEL SYSTEM

1

355901A1

HOUSING

Housing, Consists Of Ref. Number : 2

1шт.

2

289761A1

STUD

Stud, M10 x 25

4шт.

3

355902A1

GASKET

Housing

1шт.

4

REF

INSTRUCTION

Pump Injection, See Figure : 3-17

1шт.

5

289795A1

WASHER

M10

4шт.

6

289786A1

LOCK WASHER

Lock, W10

4шт.

7

289541A1

NUT

M10

4шт.
