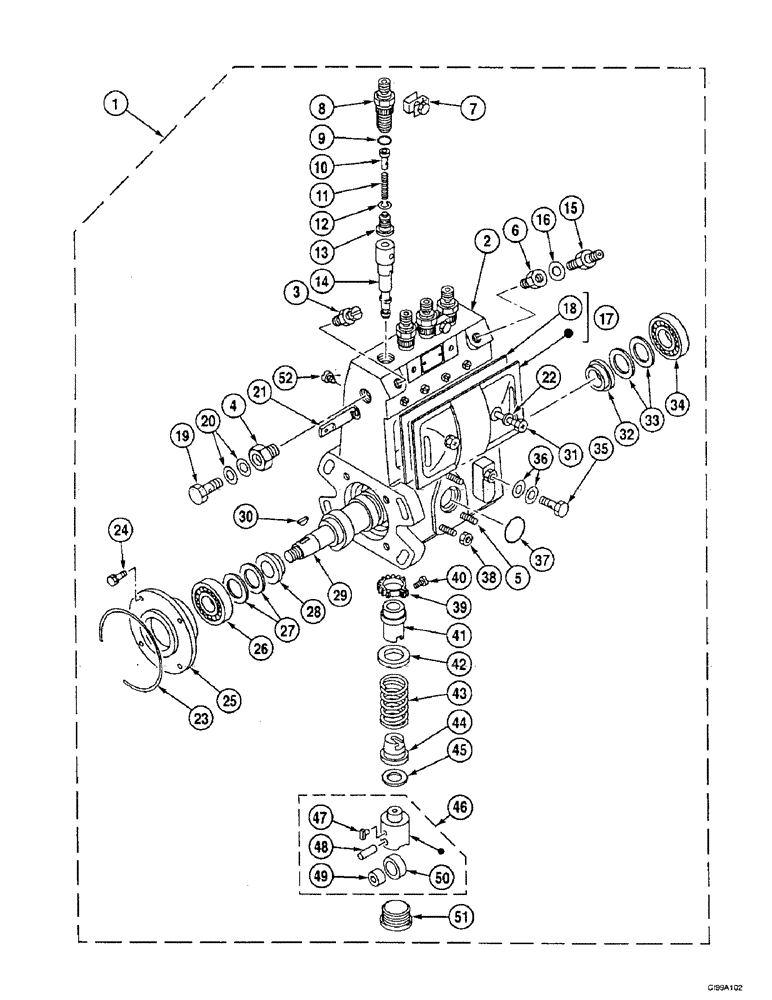

Запчасти Case 9007B (3-16) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

1

355447A1

PUMP, FUEL INJECTION

PUMP, INJECTION Consists Of Ref. Numbers : 2-52

1шт.

Ref. 1 is the complete injection pump assy including the feed pump and governor assy.

1шт.

2

355385A1

BODY

Pump, Injection

1шт.

3

355415A1

BOLT

Bleed

1шт.

4

289945A1

ADAPTER

1шт.

5

289933A1

STUD

3шт.

6

355412A1

ADAPTER

1шт.

7

289530A1

LARGE PLATE

PLATE, LARGE

2шт.

8

355386A1

ADAPTER

Holder

4шт.

9

355387A1

GASKET

4шт.

10

355388A1

SPRING SEAT

4шт.

11

355389A1

SPRING

4шт.

12

355390A1

GASKET

4шт.

13

355391A1

VALVE POPPET

Second. Relief

4шт.

14

355392A1

PLUNGER

4шт.

15

355406A1

VALVE, CUSHION

Anti-Excess Flow

1шт.

16

355407A1

GASKET

1шт.

17

355403A1

COVER

Plate, Consists Of Ref. Number : 18

1шт.

18

355440A1

GASKET

Gasket, Plate

1шт.

19

355411A1

BANJO BOLT

Bolt, Banjo

1шт.

20

355407A1

GASKET

2шт.

21

355409A1

SEAL

Rack, Gear

1шт.

22

355414A1

GASKET

Spool

2шт.

23

355395A1

GASKET

1шт.

24

355413A1

SCREW

4шт.

25

355394A1

BEARING

Cover Sheet

1шт.

26

289751A1

BALL BEARING

Ball NSK

1шт.

26

289431A1

BALL BEARING

Ball NTN

1шт.

27

289531A1

SHIM

0.10 mm (0.0039 in)

1шт.

27

289532A1

SHIM

0.12 mm (0.0047 in)

1шт.

27

289533A1

SHIM

0.14 mm (0.0055 in)

1шт.

27

289534A1

SHIM

0.16 mm (0.0063 in)

1шт.

27

289535A1

SHIM

0.18 mm (0.0071 in)

1шт.

27

289935A1

SHIM

0.30 mm (0.0118 in)

1шт.

27

289536A1

SHIM

0.50 mm (0.0197 in)

1шт.

27

289523A1

SHIM

0.70 mm (0.0276 in)

1шт.

27

289537A1

SHIM

1.00 mm (0.0394 in)

1шт.

27

289539A1

SHIM

1.40 mm (0.0551 in)

1шт.

27

289278A1

SHIM

2.40 mm (0.0944 in)

1шт.

27

355408A1

SHIM

1шт.

28

355396A1

LOCKING RING

Ring, Retaining

1шт.

29

355397A1

CAMSHAFT

1шт.

30

289562A1

KEY

1шт.

31

289249A1

SCREW

2шт.

32

355396A1

LOCKING RING

Ring, Retaining

1шт.

33

289531A1

SHIM

0.10 mm (0.0039 in)

1шт.

33

289532A1

SHIM

0.12 mm (0.0047 in)

1шт.

33

289533A1

SHIM

0.14 mm (0.0055 in)

1шт.

33

289534A1

SHIM

0.16 mm (0.0063 in)

1шт.

33

289535A1

SHIM

0.18 mm (0.0071 in)

1шт.

33

289935A1

SHIM

0.30 mm (0.0118 in)

1шт.

33

289536A1

SHIM

0.50 mm (0.0197 in)

1шт.

33

289523A1

SHIM

0.70 mm (0.0276 in)

1шт.

33

289537A1

SHIM

1.00 mm (0.0394 in)

1шт.

33

289539A1

SHIM

1.40 mm (0.0551 in)

1шт.

33

289278A1

SHIM

2.40 mm (0.0944 in)

1шт.

34

289751A1

BALL BEARING

Ball NSK

1шт.

34

289431A1

BALL BEARING

Ball NTN

1шт.

35

355405A1

BOLT

Bolt, Banjo

1шт.

36

289813A1

PACKING

Seal

2шт.

37

355393A1

GASKET

Seal

1шт.

38

289625A1

NUT

3шт.

39

289942A1

PINION

Gear

4шт.

40

289944A1

SCREW

4шт.

41

355398A1

COUPLING

Sleeve

4шт.

42

355399A1

SPRING SEAT

4шт.

43

355400A1

SPRING

4шт.

44

355401A1

SPRING SEAT

4шт.

45

289516A1

SHIM

0.20 mm (0.0079 in)

1шт.

45

289517A1

SHIM

0.25 mm (0.0098 in)

1шт.

45

289519A1

SHIM

0.30 mm (0.0118 in)

1шт.

45

289518A1

SHIM

0.35 mm (0.0137 in)

1шт.

45

289520A1

SHIM

0.40 mm (0.0157 in)

1шт.

45

289522A1

SHIM

0.45 mm (0.0177 in)

1шт.

45

289521A1

SHIM

0.50 mm (0.0197 in)

1шт.

45

289512A1

SHIM

0.55 mm (0.0217 in)

1шт.

45

289503A1

SHIM

0.60 mm (0.0236 in)

1шт.

45

289513A1

SHIM

0.65 mm (0.0256 in)

1шт.

45

289504A1

SHIM

0.70 mm (0.0276 in)

1шт.

45

289514A1

SHIM

0.75 mm (0.0295 in)

1шт.

45

289505A1

SHIM

0.80 mm (0.0315 in)

1шт.

45

289515A1

SHIM

0.85 mm (0.0335 in)

1шт.

45

289506A1

SHIM

0.90 mm (0.0354 in)

1шт.

45

289946A1

SHIM

0.95 mm (0.0374 in)

1шт.

45

289507A1

SHIM

1.00 mm (0.0394 in)

1шт.

45

289947A1

SHIM

1.05 mm (0.0413 in)

1шт.

45

289508A1

SHIM

1.10 mm (0.0433 in)

1шт.

45

289948A1

SHIM

1.15 mm (0.0453 in)

1шт.

45

289509A1

SHIM

1.20 mm (0.0472 in)

1шт.

45

289949A1

SHIM

1.25 mm (0.0492 in)

1шт.

45

289510A1

SHIM

1.30 mm (0.0512 in)

1шт.

45

289527A1

SHIM

1.35 mm (0.0531 in)

1шт.

45

289511A1

SHIM

1.40 mm (0.0551 in)

1шт.

45

289528A1

SHIM

1.45 mm (0.0570 in)

1шт.

45

289525A1

SHIM

1.50 mm (0.0591 in)

1шт.

45

289529A1

SHIM

1.55 mm (0.0610 in)

1шт.

45

289526A1

SHIM

1.60 mm (0.0630 in)

1шт.

46

355402A1

END FITTING

Tappet, Crankshaft Consists Of Ref. Numbers : 47-50

4шт.

47

355441A1

GUIDE

1шт.

48

255442A1

SEAL KIT

Pin

1шт.

49

355443A1

BUSHING

1шт.

50

355444A1

TAPPET

1шт.

51

355404A1

PLUG

4шт.

52

289275A1

BOLT

1шт.
