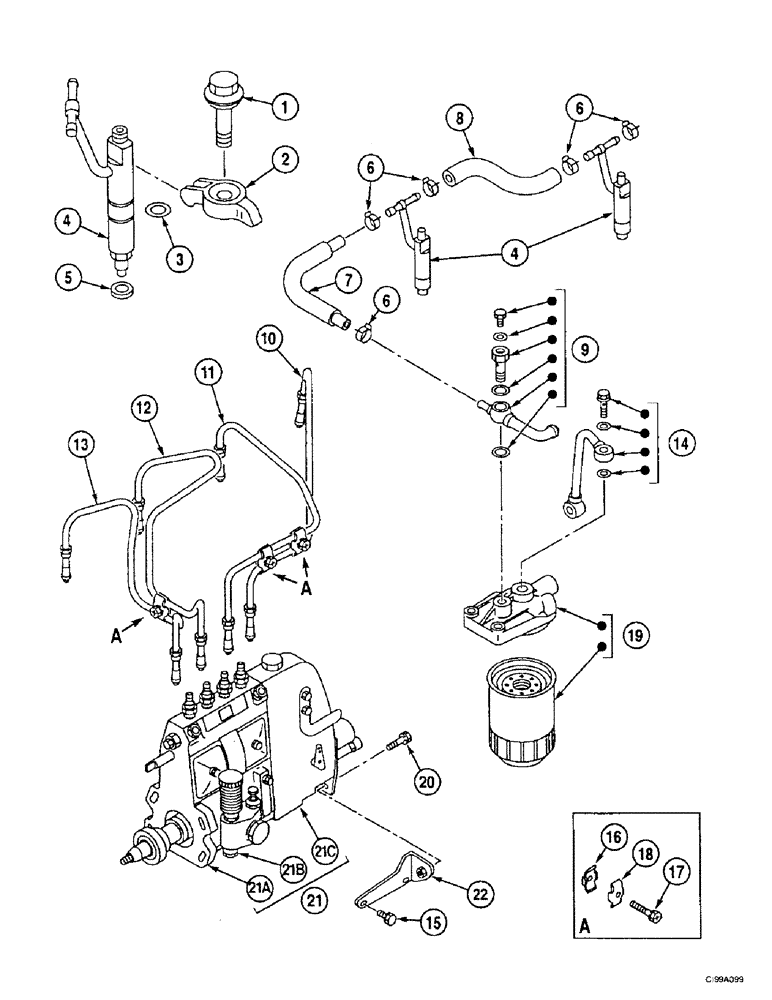

Запчасти Case 9007B (3-10) - FUEL SYSTEM (03) - FUEL SYSTEM

1

355460A1

BOLT

4шт.

2

355459A1

SUPPORT

4шт.

3

355458A1

GASKET

4шт.

4

355457A1

INJECTOR ASSY.

See Figure : 3-30

4шт.

5

355461A1

GASKET

4шт.

6

355455A1

CLAMP

9шт.

7

355456A1

HOSE

1шт.

8

355454A1

HOSE

3шт.

9

REF

INSTRUCTION

Pipe, See Figures : 3-13, 3-15

1шт.

10

355451A1

PIPE

1шт.

11

355450A1

PIPE

1шт.

12

355449A1

PIPE

1шт.

13

355448A1

PIPE

1шт.

14

REF

INSTRUCTION

Pipe, See Figure : 3-13

1шт.

15

289014A1

BOLT

Screw M8 x 20; 10.9

2шт.

16

355465A1

CLAMP BRACKET

Clamp

3шт.

17

355466A1

BOLT

M8 x 18; 10.9

1шт.

18

355463A1

CLAMP BRACKET

Clamp

1шт.

19

REF

INSTRUCTION

Filter, Fuel, See Figure : 3-14

1шт.

20

289037A1

BOLT

Screw M10 x 25; 10.9

1шт.

Ref. 21 is complete injection pump assy including the feed pump and the governor assy too.

1шт.

21

355447A1

PUMP, FUEL INJECTION

PUMP, INJECTION Consists Of Ref. Numbers : 21A, 21B, 21C

1шт.

21a

355385A1

BODY

Pump, Injection, See Figure : 3-16

1шт.

21b

355643A1

FEED PUMP

Feed, See Figure : 3-26

1шт.

21c

355219A1

GOVERNOR

Housing Assy, See Figure : 3-22

1шт.

22

355464A1

SUPPORT

1шт.
