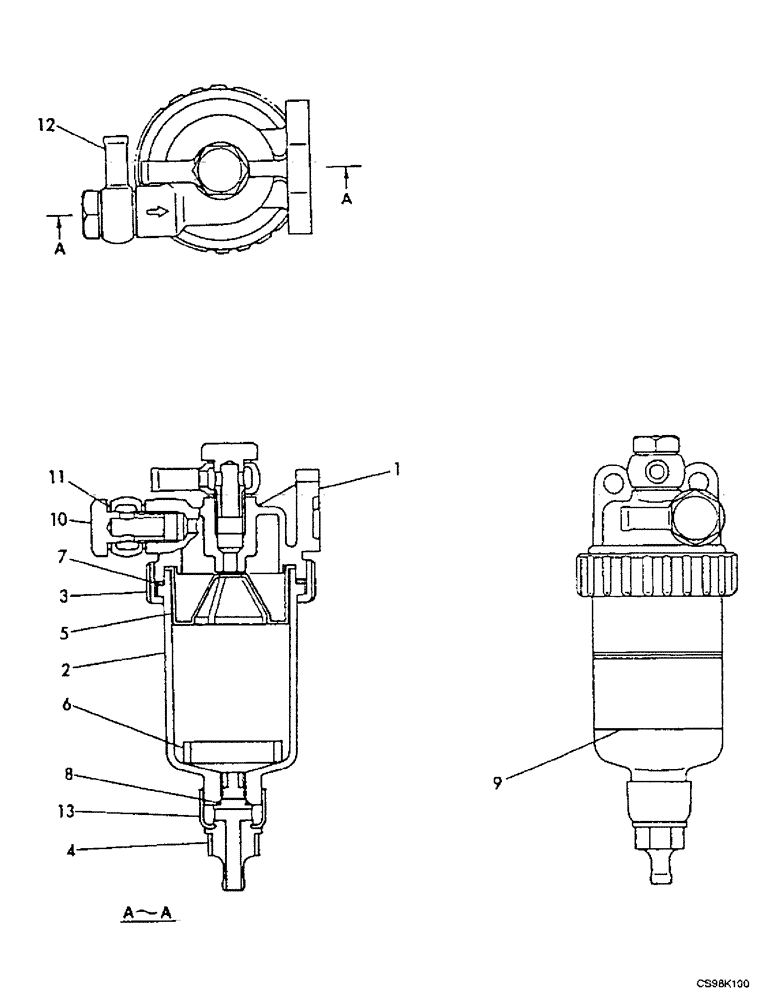

Запчасти Case 9007B (3-08) - FILTER WITH FUEL SEPARATOR (03) - FUEL SYSTEM

151071A1

WATER TRAP

Separator, Consists of: Ref. No. 1-13

1шт.

1

156289A1

FILTER HEAD

Body

1шт.

2

156240A1

FILTER BOWL

1шт.

3

156184A1

RING NUT

1шт.

4

155467A1

PLUG, DRAIN

Screw Bleed

1шт.

5

156291A1

PLATE

1шт.

6

156290A1

FLOAT

1шт.

7

155175A1

O-RING

1шт.

8

154462A1

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Decal

1шт.

10

156185A1

BANJO BOLT

Banjo

2шт.

11

155297A1

GASKET

4шт.

12

156292A1

FITTING

Bolt Banjo

2шт.

13

155353A1

PLUG

1шт.
