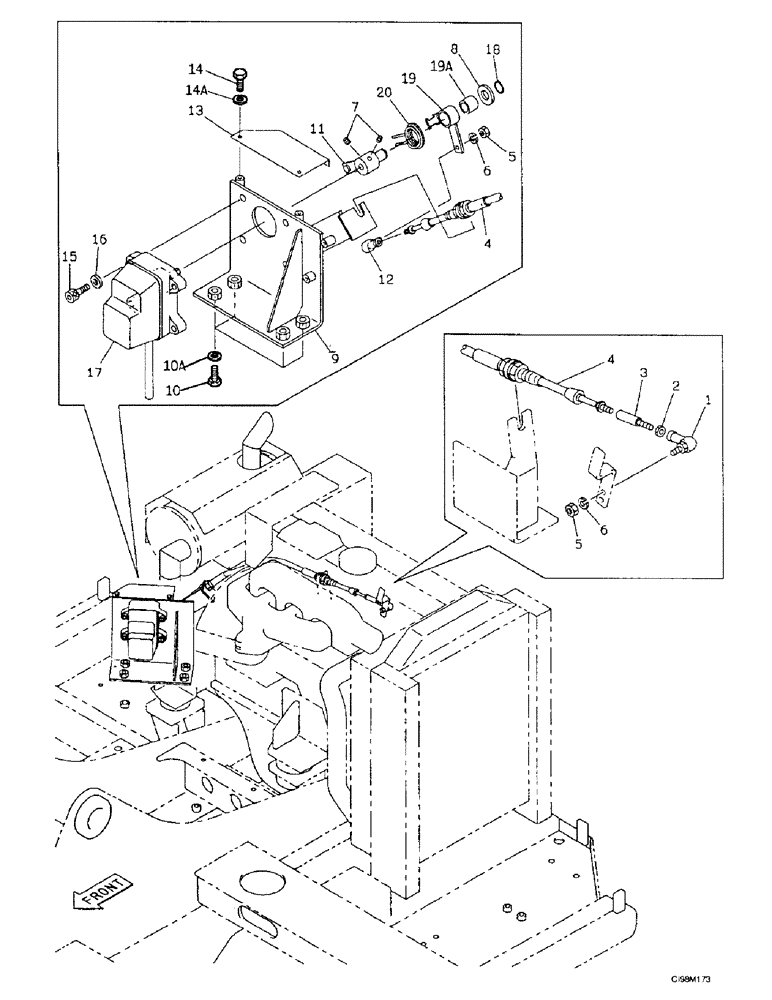

Запчасти Case 9007B (3-06) - ENGINE THROTTE CONTROL (03) - FUEL SYSTEM

1

150045A1

BALL JOINT

1шт.

2

829-12406

NUT,M6, Cl 8 5, LH

M6; 10

1шт.

3

167593A1

ROD

Control

1шт.

4

167619A1

BOWDEN CONTROL

Cable

1шт.

5

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

6

892-11006

LOCK WASHER,M6

2шт.

7

878-10812

SET SCREW,Hex Skt, M8 x 12mm, Cup Pt

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

9

167639A1

SUPPORT

Mount

1шт.

10

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

10a

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

11

167614A1

LEVER

Bellcrank

1шт.

12

150054A1

BALL JOINT

1шт.

13

167636A1

COVER

Cover Sheet

1шт.

14

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

2шт.

14a

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

15

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

4шт.

16

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

17

160614A1

MOTOR, ELECTRIC

1шт.

17

160614A1R

REMAN-ELECTRIC MOTOR

9007B CASE CRAWLER EXCAVATOR

1шт.

17

160614A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

18

800-1118

SNAP RING,M18, Ext

Snap

1шт.

19

167618A1

LEVER

1шт.

19a

167606A1

BEARING, NEEDLE,18 mm ID x 25 mm OD x 21 mm

Bushing

1шт.

20

167607A1

SPRING

1шт.
