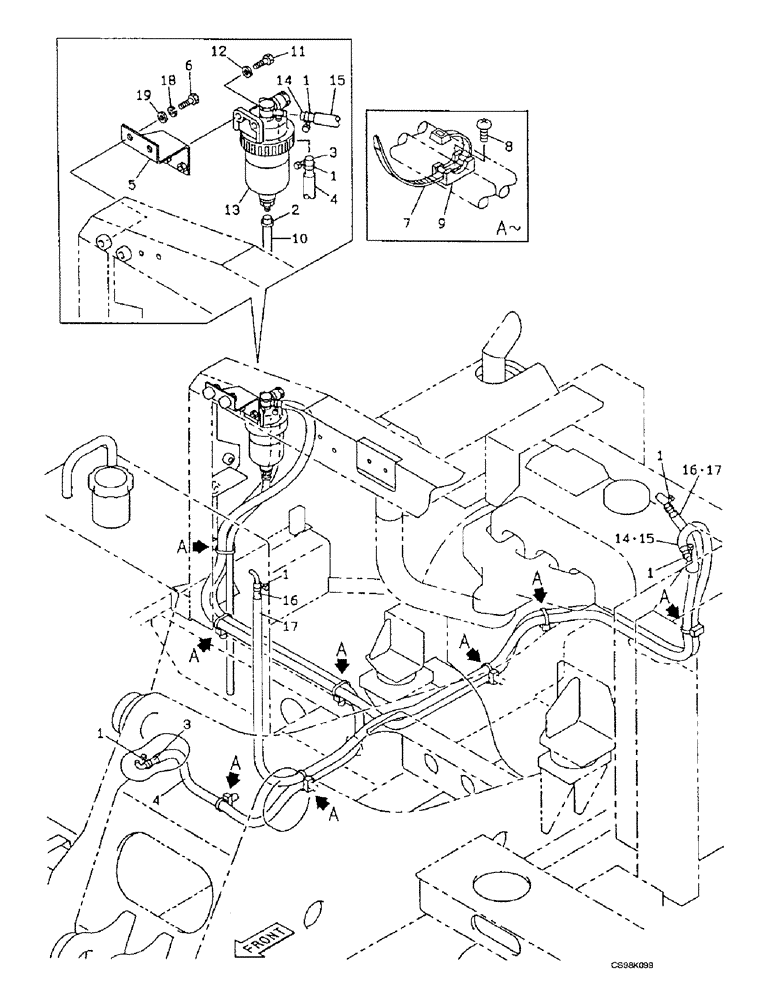

Запчасти Case 9007B (3-04) - FUEL SYSTEM (03) - FUEL SYSTEM

1

153043A1

COLLAR

6шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Clip Mounting 15 in

1шт.

3

157609A1

LARGE HOSE

HOSE,LARGE

1шт.

4

151736A1

PLASTIC-RUBBER TUBE

Sleeve, Hose

1шт.

5

166334A1

BRACKET

Support

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

7

D150798

STRAP

Clip Mounting

8шт.

8

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10.9

8шт.

9

150860A1

COLLAR

Base

8шт.

10

157628A1

FUEL TUBE,9.5 mm ID, 14.5 mm OD

1шт.

12

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

2шт.

13

151071A1

WATER TRAP

Separator, See Figure : 3-8

1шт.

14

157613A1

LARGE HOSE

HOSE,LARGE

1шт.

15

150779A1

PLASTIC-RUBBER TUBE

Sleeve, Hose

1шт.

16

157648A1

FUEL TUBE

1шт.

17

150782A1

PLASTIC-RUBBER TUBE

Sleeve, Hose

1шт.

18

892-11010

LOCK WASHER,M10

2шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
