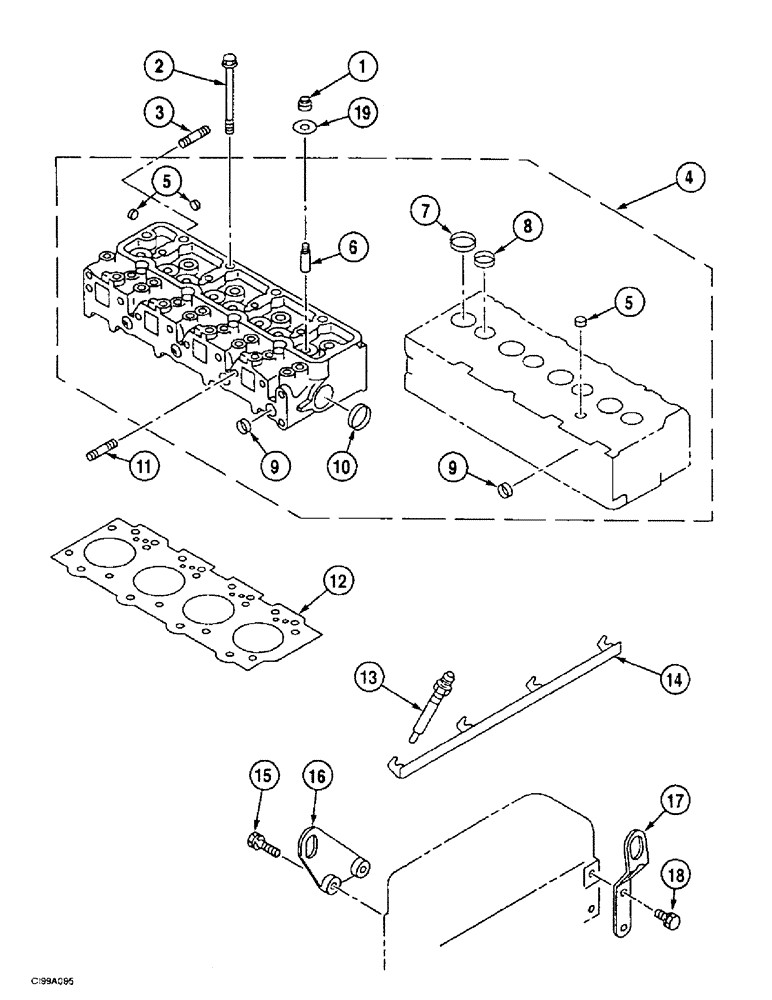

Запчасти Case 9007B (2-36) - CYLINDER HEAD - GASKET (02) - ENGINE

1

353977A1

OIL SEAL

Oil

8шт.

2

353973A1

BOLT

18шт.

3

353976A1

STUD

Exhaust

1шт.

4

353970A1

HEAD (CYLINDER)

1шт.

5

353962A1

PLUG

dia. 16

3шт.

5

289414A1

CUP

Plug dia. 12,3

5шт.

6

353959A1

GUIDE

8шт.

7

353960A1

SEAT

Valve Intake

4шт.

8

353961A1

SEAT

Valve Exhaust

4шт.

9

353963A1

CUP

Bushing, dia. 22

7шт.

10

289074A1

CUP

1шт.

11

289762A1

STUD

Intake

2шт.

12

353971A1

CYLINDER HEAD GASKET

Cyl. Head

1шт.

13

289980A1

GLOW PLUG

4шт.

14

353974A1

CONNECTOR, ELEC

CONNECTOR Ramp

1шт.

15

NSS

NOT SOLD SEPARAT

Screw

2шт.

16

353978A1

LIFTING RING

Front

1шт.

17

353975A1

LIFTING RING

Rear

1шт.

18

288996A1

BOLT

Screw, M8 x 25; 10.9

2шт.

19

355175A1

SPRING SEAT

Washer

8шт.
