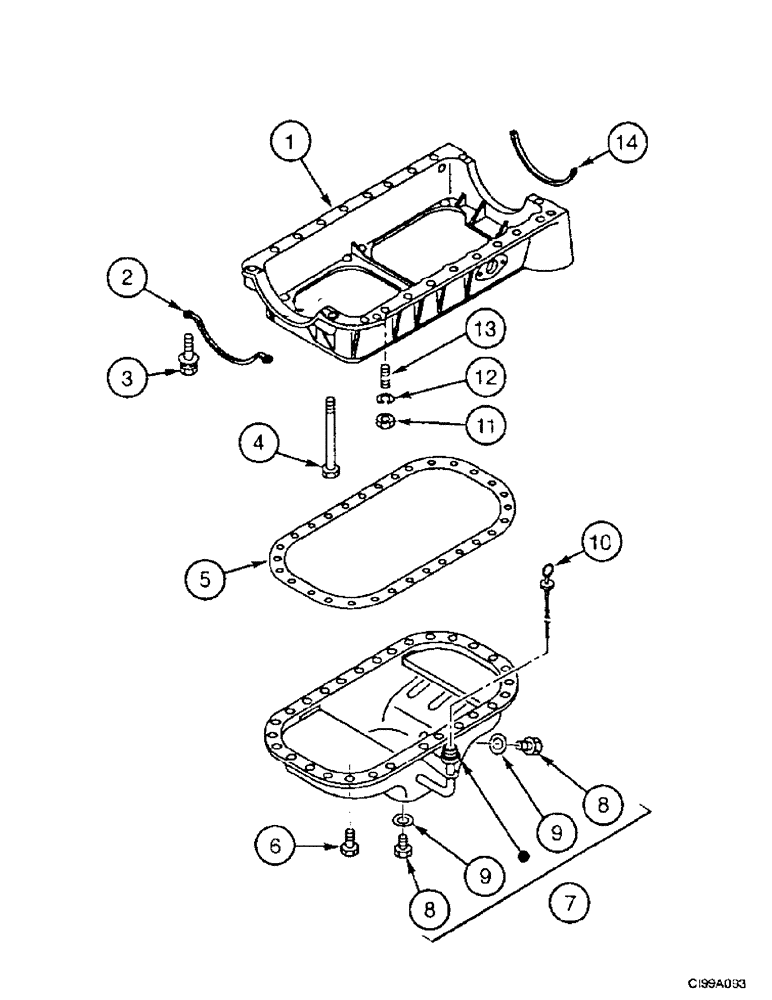

Запчасти Case 9007B (2-32) - OIL PAN (02) - ENGINE

1

353985A1

HOUSING

1шт.

2

353989A1

GASKET

Gasket, Housing

1шт.

3

353986A1

BOLT

Screw, M8 x 100; 10.9

2шт.

3

288996A1

BOLT

Screw, M8 x 25; 10.9

16шт.

4

353987A1

BOLT

Screw

2шт.

5

353983A1

GASKET

Gasket, Housing

1шт.

6

353984A1

BOLT

Screw, M6 x 16; 10.9

30шт.

7

353981A1

PAN, ENGINE OIL

PAN, OIL Housing Assy, Consists Of Ref. Numbers : 8, 9

1шт.

8

353951A1

PLUG

1шт.

9

353950A1

GASKET

Seal

1шт.

10

353982A1

GAUGE

Dipstick

1шт.

11

289775A1

NUT

M8

2шт.

12

289782A1

LOCK WASHER

Lock W8

2шт.

13

353988A1

STUD

M8 x 40

2шт.

14

353990A1

GASKET

Gasket, Housing

1шт.
