(2-28) - ENGINE OIL PUMP

Запчасти Case 9007B (2-28) - ENGINE OIL PUMP (02) - ENGINE

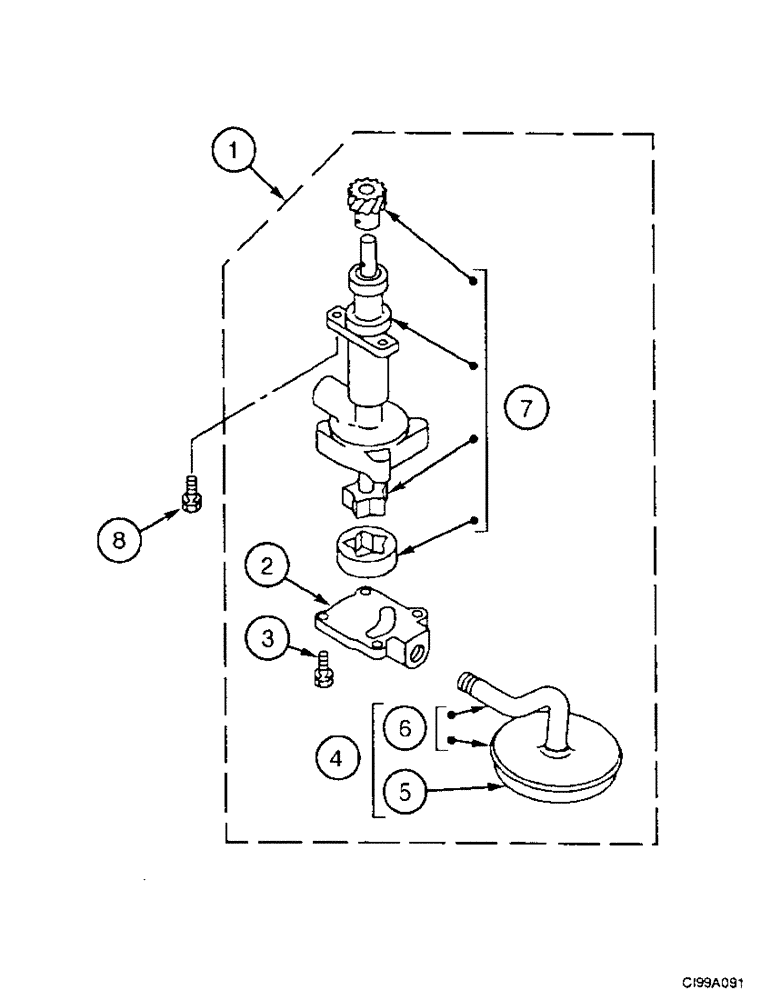

Схема запчастей Case 9007B - (2-28) - ENGINE OIL PUMP (02) - ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

355657A1

PUMP

Engine Oil, Consists Of Ref. Numbers : 2, 3, 4, 7

1шт.

2

355658A1

COVER

Body

1шт.

3

355659A1

BOLT

M8 x 25; 10.9

4шт.

4

355660A1

STRAINER ASSY.

Filter, Consists Of Ref. Numbers : 5, 6

1шт.

5

355671A1

STRAINER ASSY.

Filter

1шт.

6

355672A1

SUCTION PIPE

1шт.

7

355661A1

ROTOR

1шт.

8

289034A1

BOLT

Screw, M8 x 25; 10.9

2шт.
