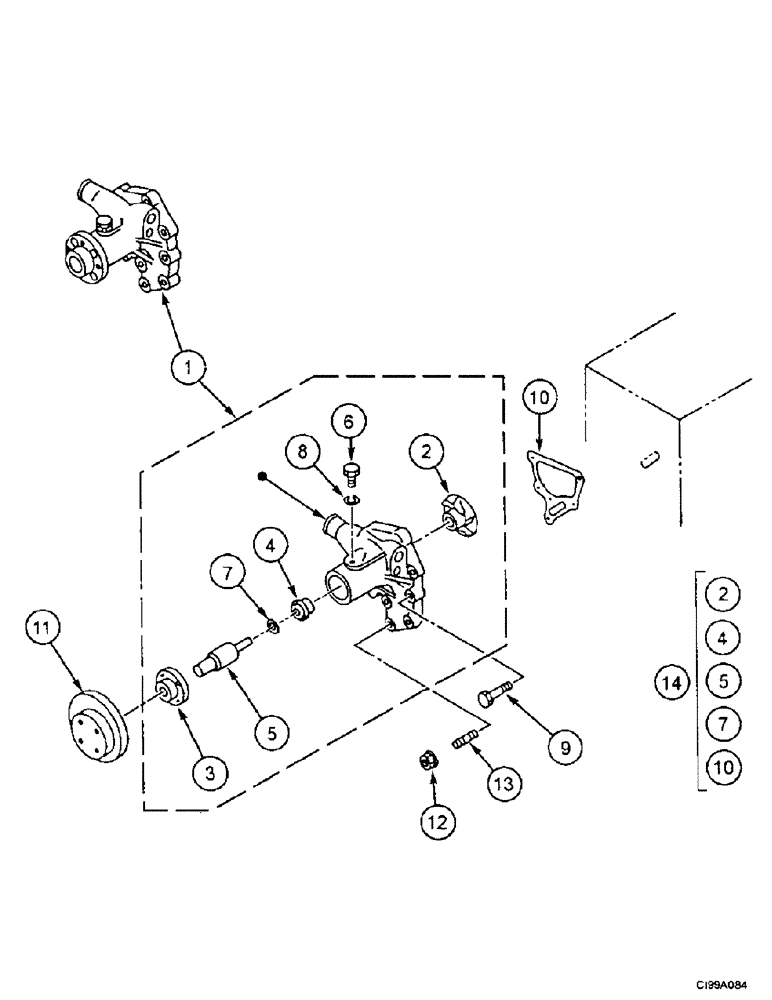

Запчасти Case 9007B (2-14) - WATER PUMP (02) - ENGINE

1

355250A1

PUMP

Water, Consists Of Ref. Numbers : 2-8

1шт.

2

355221A1

IMPELLER

Turbine

1шт.

3

355247A1

FLANGE

Pulley

1шт.

4

355222A1

SEAL

1шт.

5

355223A1

SHAFT

1шт.

6

355249A1

PLUG

1шт.

7

355224A1

SEAL

1шт.

8

289782A1

LOCK WASHER

Lock, W8

1шт.

9

355254A1

BOLT

Screw, M8 x 55; 10.9

5шт.

10

355220A1

GASKET

Gasket, Cover

1шт.

11

355253A1

PULLEY

Water Pump

1шт.

12

84194164

NUT

M8, Replaces 355255A1

2шт.

13

355256A1

STUD

M8 x 22

2шт.

14

355252A1

GASKET KIT

Parts, Consists Of Ref. Numbers : 2, 4, 5, 7, 10

1шт.
