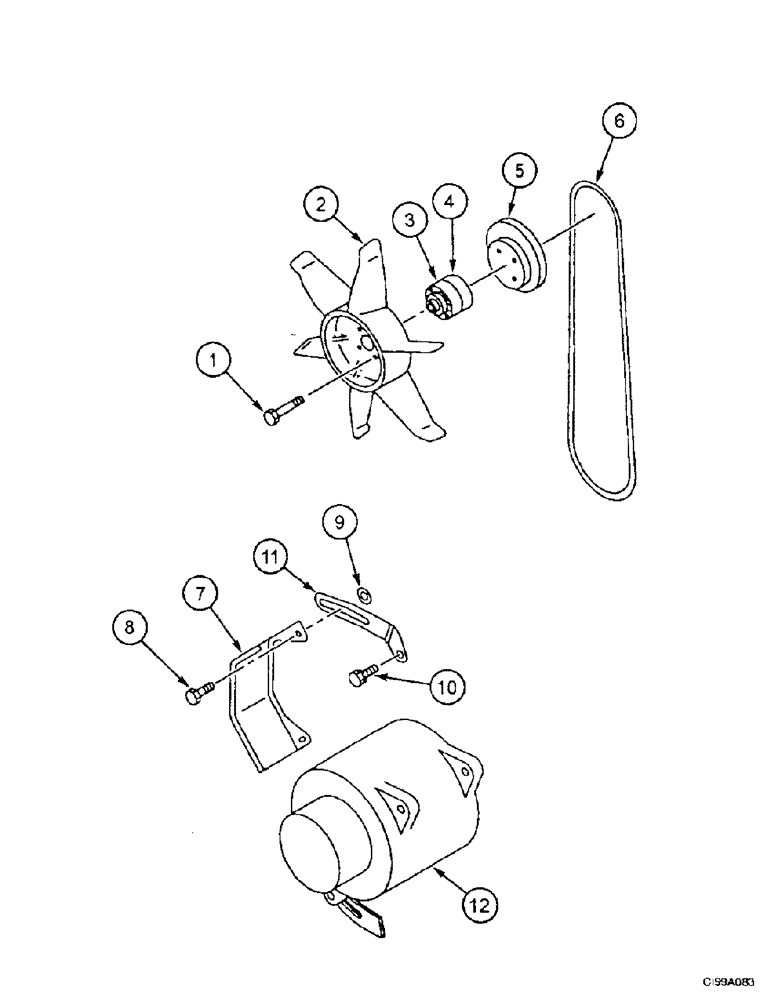

Запчасти Case 9007B (2-12) - WATER PUMP SYSTEM - VENTILATOR (02) - ENGINE

1

289019A1

BOLT

Screw M8 x 45; 10.9

4шт.

1

289400A1

BOLT

Screw M8 x 55

4шт.

2

355230A1

FAN

1шт.

3

355232A1

SPACER

1шт.

4

355233A1

SPACER

1шт.

5

REF

INSTRUCTION

Pulley, Water Pump See Figure : 2-14

1шт.

6

355231A1

BELT

1шт.

7

REF

INSTRUCTION

Mount, See Figure : 4-2

1шт.

8

289015A1

BOLT

Screw M8 x 22; 10.9

1шт.

9

289797A1

WASHER

1шт.

10

355226A1

BOLT

Screw M8 x 22; 10.9

1шт.

11

355235A1

SUPPORT

Bracket

1шт.

12

REF

INSTRUCTION

Alternator, See Figure : 4-4

1шт.
