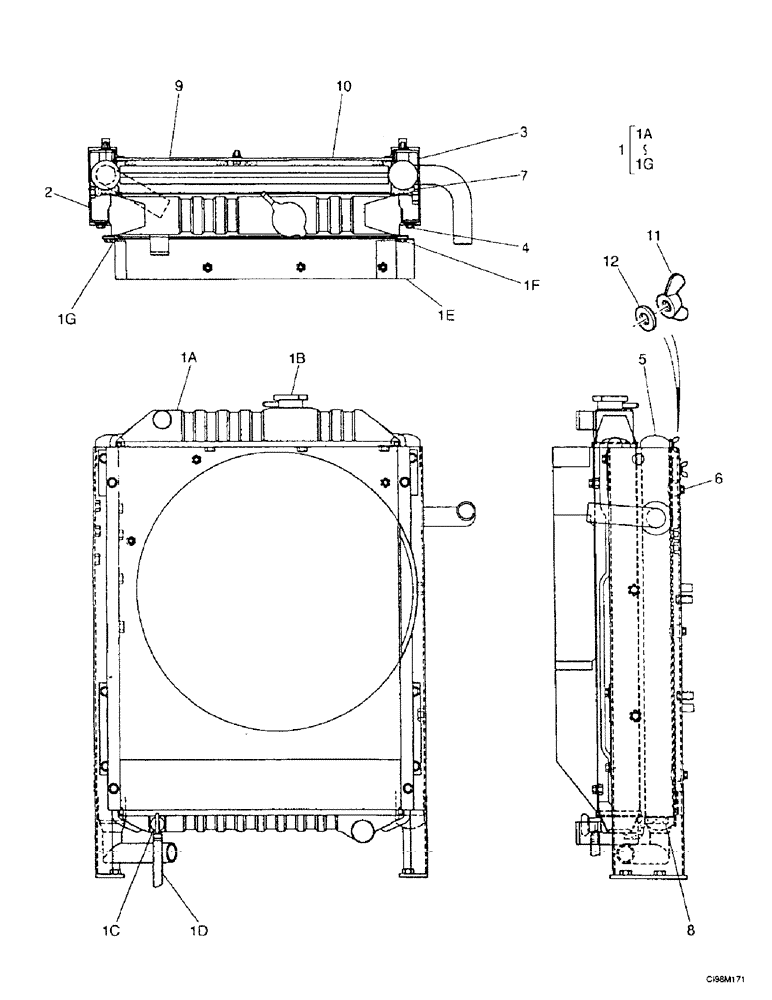

Запчасти Case 9007B (2-10) - RADIATOR - OIL COOLER (02) - ENGINE

167611A1

RADIATOR

Consists Of Ref. Numbers : 1-12

1шт.

167611A1 radiator is a production level assy number not used for service per engineering. For service order Ref. 1A thru 1G.

1шт.

1

167392A1

RADIATOR

Assy, Consists Of Ref. Numbers : 1A-1G

1шт.

1a

167388A1

CORE, RADIATOR

1шт.

1b

165655A1

CAP

Plug

1шт.

1c

156686A1

BREATHER ASSY.

Plug, Drain

1шт.

1d

156687A1

HOSE

1шт.

1e

167427A1

SHROUD

1шт.

1f

164554A1

FLANGE BOLT

4шт.

1g

167369A1

PACKING

Seal

2шт.

2

167389A1

SUPPORT

Mount

1шт.

3

167390A1

SUPPORT

Mount

1шт.

4

164554A1

FLANGE BOLT

6шт.

5

167391A1

OIL COOLER

1шт.

6

164554A1

FLANGE BOLT

6шт.

7

167370A1

PACKING

Seal

2шт.

8

167368A1

PACKING

Seal

1шт.

9

167372A1

NET

Plate

1шт.

10

167371A1

NET

Plate

1шт.

11

156606A1

BOLT,Wing, M6

Nut, Wing Replaces 156690A1

3шт.

12

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.
