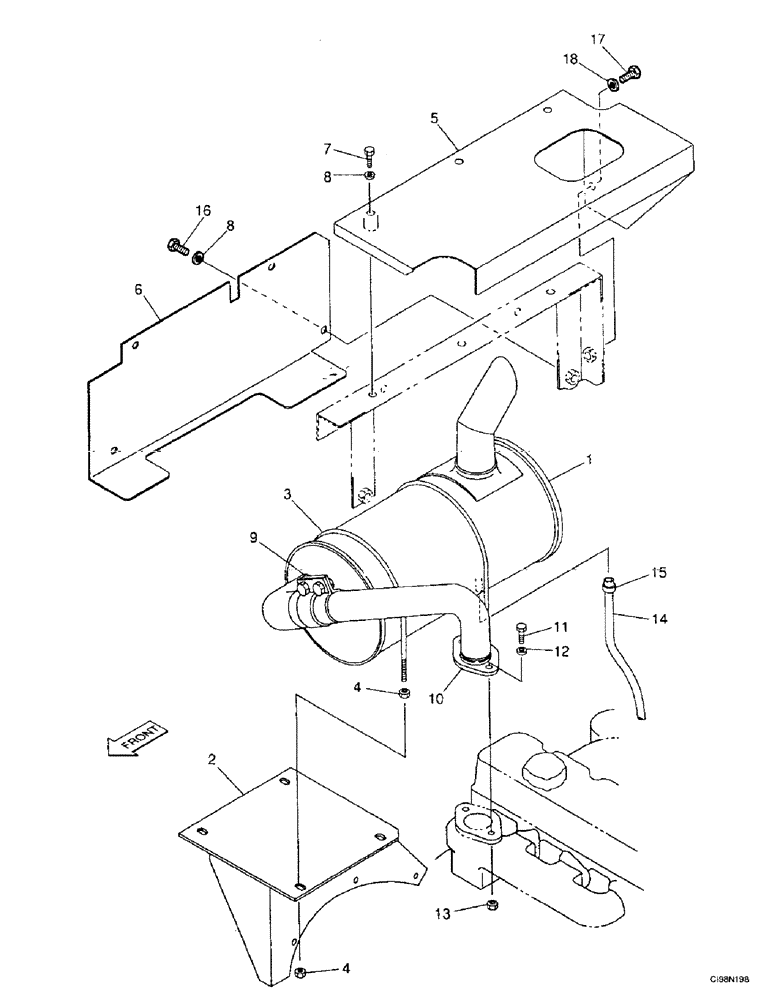

Запчасти Case 9007B (2-08) - EXHAUST (02) - ENGINE

1

339459A1

MUFFLER

1шт.

2

167620A1

SUPPORT

Mount

1шт.

3

167596A1

U-BOLT

BOLT "U" Bail

2шт.

4

150469A1

FLANGE NUT

Lock

8шт.

5

167633A1

COVER

Sheet

1шт.

6

167640A1

COVER

Sheet

1шт.

7

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

3шт.

8

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

7шт.

9

167837A1

COLLAR

1шт.

10

167621A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Manifold

1шт.

12

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

14

157475A1

TUBE

Pipe, Exhaust

1шт.

15

151367A1

COLLAR

Collar

1шт.

16

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

17

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

18

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

11

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.
