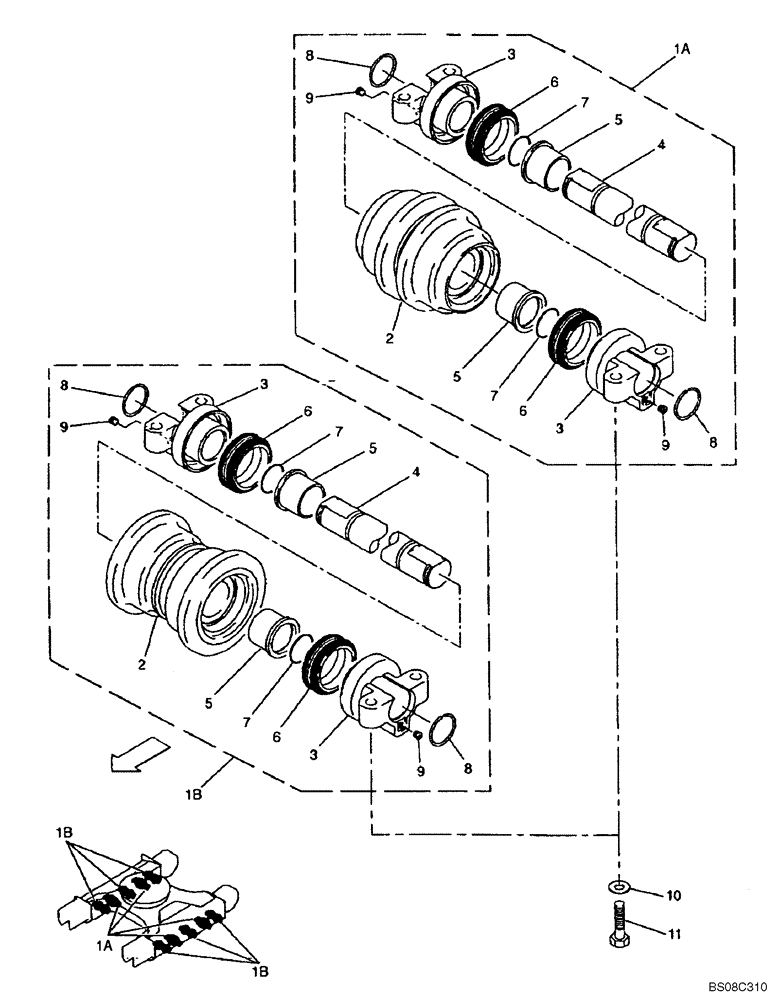

Запчасти Case 9007B (5-24) - ROLLER LOWER, EXTERNAL, INNER (11) - TRACKS/STEERING

1a

166252A1

ROLLER ASSY.

Inner, Consists Of Ref. Numbers : 2-9

4шт.

2

166254A1

SHIFTER ROLLER

1шт.

3

166255A1

COLLAR

Support

2шт.

4

166256A1

SHAFT

Pin

1шт.

5

166267A1

BUSHING

2шт.

6

166235A1

SEAL

2шт.

7

154554A1

O-RING

2шт.

8

166238A1

COLLAR

Ring, Snap

2шт.

9

158352A1

PLUG

2шт.

ref

Part No.

English Remarks

1шт.

1b

166251A1

ROLLER ASSY.

Outer, Consists Of Ref. Numbers : 2-9

6шт.

2

166253A1

SHIFTER ROLLER

1шт.

3

166255A1

COLLAR

Support

2шт.

4

166256A1

SHAFT

Pin

1шт.

5

166267A1

BUSHING

2шт.

6

166235A1

SEAL

2шт.

7

154554A1

O-RING

2шт.

8

166238A1

COLLAR

Ring, Snap

2шт.

9

158352A1

PLUG

2шт.

10

828-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

40шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

40шт.
