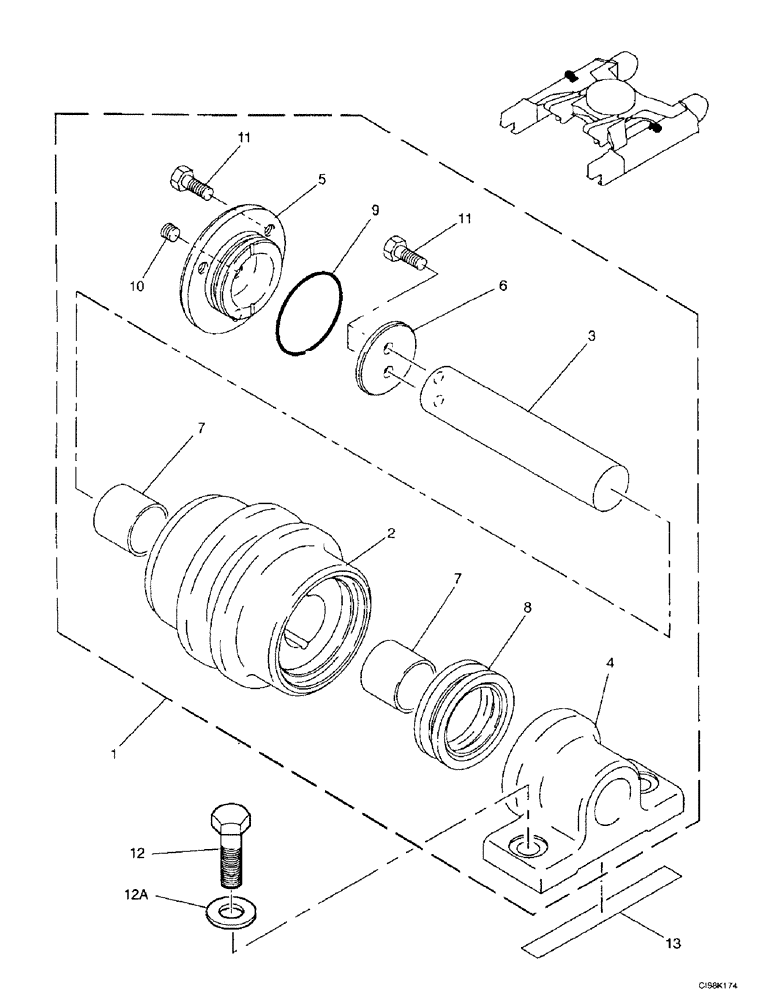

Запчасти Case 9007B (5-22) - ROLLER UPPER (11) - TRACKS/STEERING

1

166289A1

ROLLER ASSY.

Consists Of Ref. Numbers : 2-11

2шт.

2

166257A1

SHIFTER ROLLER

1шт.

3

166258A1

SHAFT

Pin

1шт.

4

166290A1

BRACKET

Support

1шт.

5

166298A1

COVER

Sheet

1шт.

6

166259A1

PLATE

1шт.

7

166245A1

PLASTIC RING

Bushing

2шт.

8

160671A1

SEAL

1шт.

9

154607A1

O-RING

1шт.

10

158352A1

PLUG

1шт.

11

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

5шт.

12

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

4шт.

12a

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

13

166445A1

ADJUSTING PLATE

Shim

2шт.
