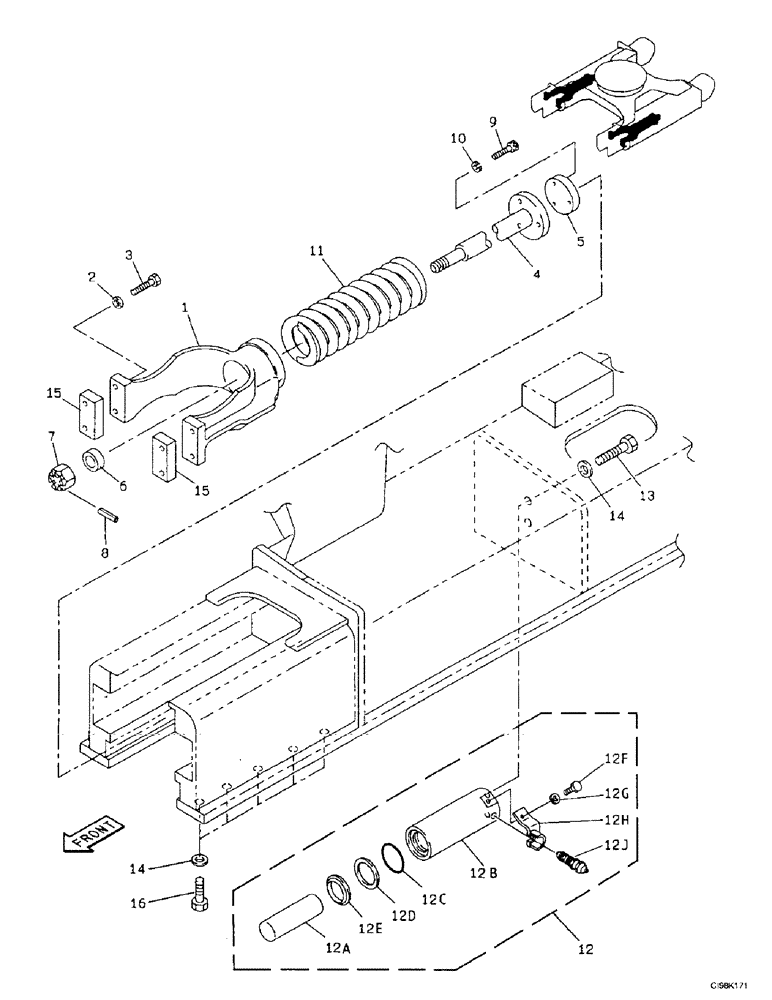

Запчасти Case 9007B (5-20) - TENSION DAMPER - RUBBER TRACK (11) - TRACKS/STEERING

1

166262A1

FORK

Support

2шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

3

828-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

8шт.

4

166263A1

ROD,THREADED

THREADED ROD Stem

2шт.

5

166279A1

SPACER

2шт.

6

166268A1

SPACER

2шт.

7

166473A1

NUT

Replaces 825-17430

2шт.

8

166476A1

PIN, ROLL

Split

2шт.

9

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

6шт.

10

892-11008

LOCK WASHER,8mm ID

6шт.

11

166244A1

SPRING

2шт.

12

166285A1

CYLINDER ASSY.

Consists Of Ref. Numbers : 12A-12J

2шт.

12a

166286A1

JACK PISTON

1шт.

12b

166287A1

CYLINDER ASSY.

1шт.

12c

154640A1

O-RING

1шт.

12d

154085A1

BACK-UP RING

1шт.

12e

166236A1

SEAL

1шт.

12f

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

12g

892-10008

LOCK WASHER,M8

1шт.

12h

166288A1

BRACKET

Mount

1шт.

12j

150107A1

LUBE NIPPLE

Fitting, Grease

1шт.

13

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

24шт.

15

166275A1

SPACER

Spacer

4шт.

16

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

20шт.
