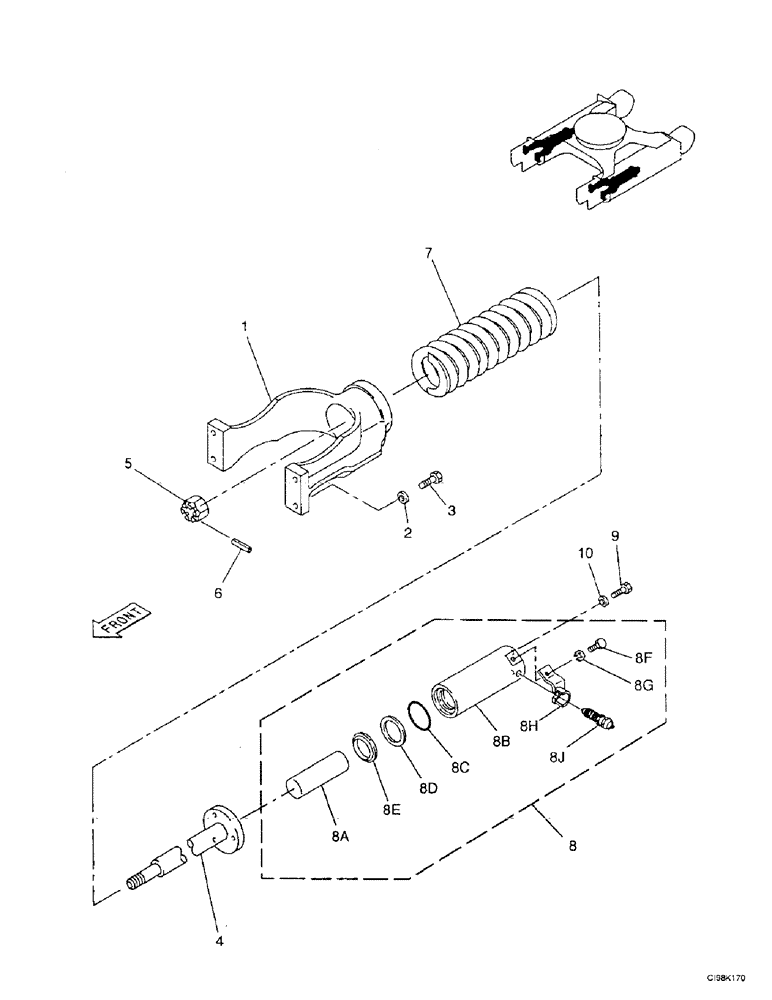

Запчасти Case 9007B (5-18) - TENSION DAMPER - STEEL TRACK (11) - TRACKS/STEERING

1

166262A1

FORK

Support

2шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

3

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

4

166263A1

ROD,THREADED

THREADED ROD Stem

2шт.

5

166473A1

NUT

Replaces 825-17430

2шт.

6

166476A1

PIN, ROLL

Split

2шт.

7

166244A1

SPRING

2шт.

8

166285A1

CYLINDER ASSY.

Consists Of Ref. Numbers : 8A-8J

2шт.

8a

166286A1

JACK PISTON

1шт.

8b

166287A1

CYLINDER ASSY.

1шт.

8c

154640A1

O-RING

1шт.

8d

154085A1

BACK-UP RING

Backup

1шт.

8e

166236A1

SEAL

1шт.

8f

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

8g

892-11008

LOCK WASHER,8mm ID

1шт.

8h

166288A1

BRACKET

Mount

1шт.

8j

150107A1

LUBE NIPPLE

Fitting, Grease

1шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.
