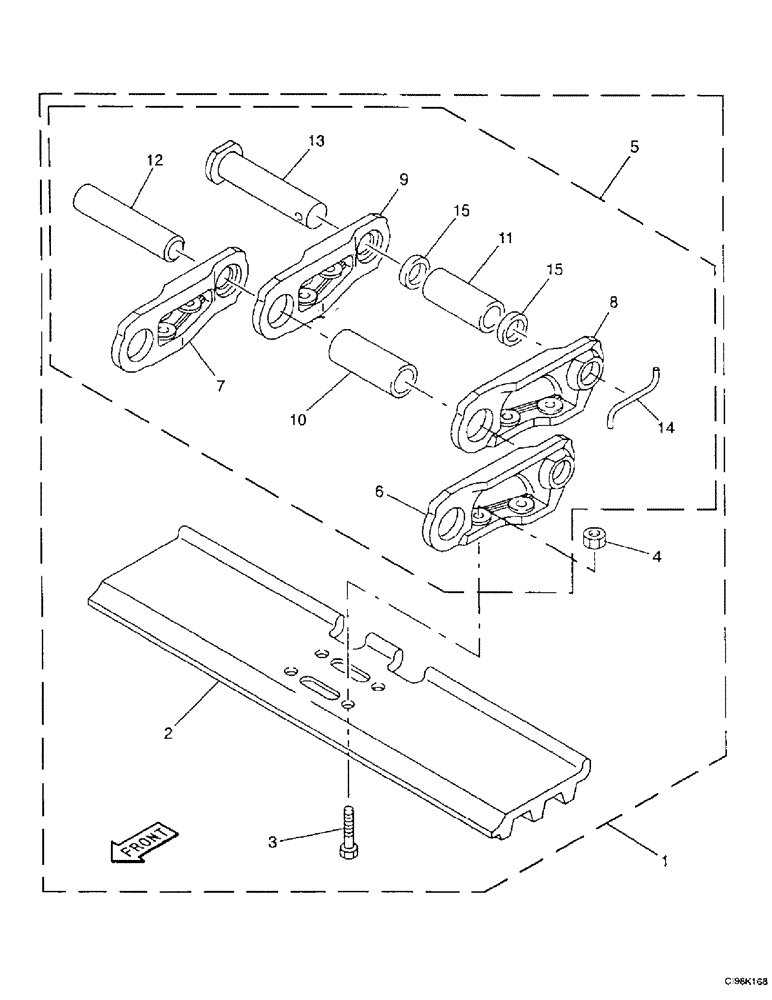

Запчасти Case 9007B (5-10) - STEEL TRACK, WIDTH : 450 MM (17-3/4 IN), WIDTH : 600 MM (23-5/8 IN), OPTIONAL (11) - TRACKS/STEERING
№
Артикул
Название
Примечание
Количество
1
166309A1
CHAIN GUIDE
CHAIN TRACK Track, 55041 Consists Of Ref. Numbers : 2-5
2шт.
2
166312A1
TRACK SHOE
450 mm (17-3/4 in)
42шт.
3
166299A1
BOLT
Screw
168шт.
4
166300A1
NUT
168шт.
5
166311A1
CHAIN (CE)
Consists Of Ref. Numbers : 6-15
1шт.
6
166301A1
CHAIN (CE)
Link; (41) KAA1104 Bushings and (82) KAA1106 Dust Seals Per Chain Assy Used Between Ref 6 and 8 and 7 and 9
41шт.
7
166302A1
CHAIN (CE)
Link; (41) KAA1104 Bushings and (82) KAA1106 Dust Seals Per Chain Assy Used Between Ref 6 and 8 and 7 and 9
41шт.
8
166303A1
LINK
(41) KAA1104 Bushings and (82) KAA1106 Dust Seals Per Chain Assy Used Between Ref 6 and 8 and 7 and 9
1шт.
9
166304A1
LINK
(41) KAA1104 Bushings and (82) KAA1106 Dust Seals Per Chain Assy Used Between Ref 6 and 8 and 7 and 9
1шт.
10
166305A1
BUSHING
41шт.
11
166307A1
BUSHING
1шт.
12
166306A1
PIN
41шт.
13
166308A1
HEADED PIN
1шт.
14
166247A1
LINCH PIN
Split
1шт.
15
166248A1
COLLAR CLAMP
Spacer
2шт.
ref
Part No.
English Remarks
1шт.
1
166310A1
CHAIN GUIDE
CHAIN TRACK Track, Consists Of Ref. Numbers : 2-5
2шт.
2
166240A1
TRACK SHOE
600 mm (23-5/8 in)
42шт.
3
166249A1
BOLT
Screw
168шт.
4
166300A1
NUT
168шт.
5
166311A1
CHAIN (CE)
Consists Of Ref. Numbers : 6-15
1шт.
6
166301A1
CHAIN (CE)
Link; (41) KAA1104 Bushings and (82) KAA1106 Dust Seals Per Chain Assy Used Between Ref 6 and 8 and 7 and 9
41шт.
7
166302A1
CHAIN (CE)
Link; (41) KAA1104 Bushings and (82) KAA1106 Dust Seals Per Chain Assy Used Between Ref 6 and 8 and 7 and 9
41шт.
8
166303A1
LINK
(41) KAA1104 Bushings and (82) KAA1106 Dust Seals Per Chain Assy Used Between Ref 6 and 8 and 7 and 9
1шт.
9
166304A1
LINK
(41) KAA1104 Bushings and (82) KAA1106 Dust Seals Per Chain Assy Used Between Ref 6 and 8 and 7 and 9
1шт.
10
166305A1
BUSHING
41шт.
11
166307A1
BUSHING
1шт.
12
166306A1
PIN
41шт.
13
166308A1
HEADED PIN
1шт.
14
166247A1
LINCH PIN
Split
1шт.
15
166248A1
COLLAR CLAMP
Spacer
2шт.
Выбрано товаров: 31
