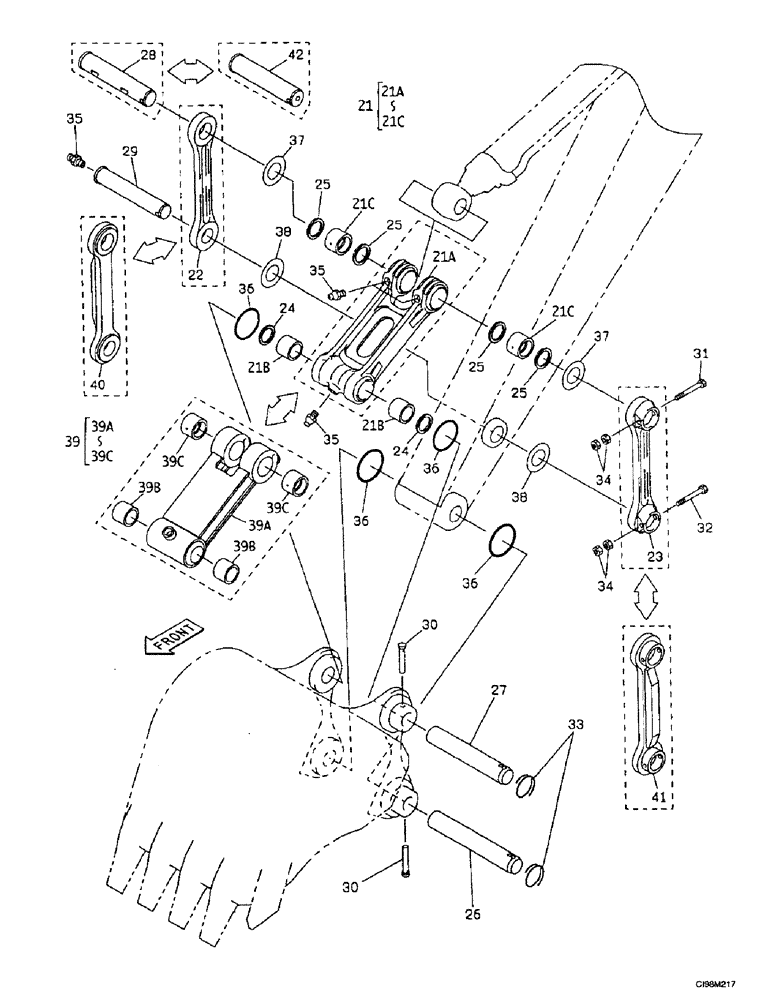

Запчасти Case 9007B (9-74) - BUCKET CONTROL (09) - CHASSIS

21

166443A1

POWER ARM

Rod Assy, Connecting, Casted Type Version Consists Of Ref. Numbers : 21A, 21B, 21C

1шт.

21a

166442A1

POWER ARM

Rod, Connecting

1шт.

21b

166435A1

BUSHING,50mm ID x 65mm OD x 50mm L

Bushing

2шт.

21c

166441A1

BUSHING

2шт.

22

166414A1

LINKAGE YOKE

Yoke, Casted Type Version

1шт.

23

166415A1

LINKAGE YOKE

Yoke, Casted Type Version

1шт.

24

166466A1

SEAL

2шт.

25

166467A1

SEAL

4шт.

26

166396A1

PIN

360 mm long with 50 mm O.D.

1шт.

27

166397A1

PIN

335 mm long with 50 mm O.D.

1шт.

28

166398A1

PIN

Casted Type Version

1шт.

29

166399A1

PIN

1шт.

30

166395A1

PIN,12mm OD x 103mm L

Pin

2шт.

31

514-862

BOLT,Hex, M12 x 1.25 x 110mm, Cl 10.9

Screw M12 x 110; 10.9

1шт.

32

514-861

BOLT,Hex, M12 x 1.25 x 100mm, Cl 10.9

Screw

1шт.

33

153639A1

RING

Snap

2шт.

34

829-11412

NUT,M12 x 1.25, Cl 10

4шт.

35

153630A1

LUBE NIPPLE

Fitting, Grease

4шт.

36

166465A1

O-RING,79.6mm ID x 5.7mm Width

4шт.

37

163020A1

SHIM

Washer

2шт.

38

162973A1

WASHER,66mm ID x 120mm OD x 12mm Thk

2шт.

39

167080A1

POWER ARM

Rod Assy, Connecting, Fabricated Type Version Consists Of Ref. Numbers : 39A, 39B, 39C

1шт.

39a

NSS

NOT SOLD SEPARAT

Rod, Connecting

1шт.

39b

166435A1

BUSHING,50mm ID x 65mm OD x 50mm L

Bushing

2шт.

39c

166441A1

BUSHING

2шт.

40

167081A1

LINKAGE YOKE

Yoke, Fabricated Type Version

1шт.

41

167082A1

LINKAGE YOKE

Yoke, Fabricated Type Version

1шт.

42

167825A1

PIN

Fabricated Type Version

1шт.
