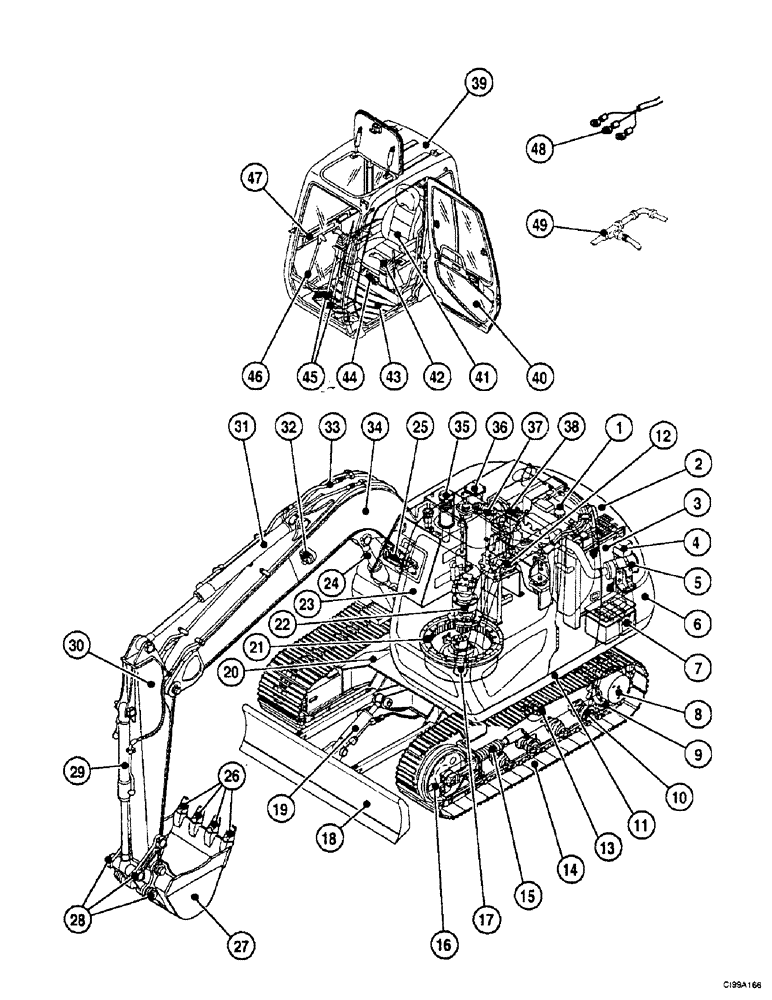

Запчасти Case 9007B (1B-2) - COMPONENT INDEX (00) - PICTORIAL INDEX

1

Engine Figures 2-2, 2-4

1шт.

2

Cowling Figures 9-12, 9-14, 9-18

1шт.

3

Radiator Figure 2-10

1шт.

4

Tank, Expansion Figure 2-2

1шт.

5

Filter, Air Figure 2-6

1шт.

6

Counterweight Figure 9-8

1шт.

7

Battery Figure 4-10

1шт.

8

Moto-Reduction Gear Figure 6-2

1шт.

9

Sprocket Figure 6-2

1шт.

10

Roller Figure 5-24

1шт.

11

Frame, Turntable Figure 9-4

1шт.

12

Valve, Control Figures 8-70 - 8-78

1шт.

13

Roller Figure 5-22

1шт.

14

Track Figures 5-10, 5-12

1шт.

15

Shock Absorber Figures 5-18, 5-20

1шт.

16

Pulley, Idler Figures 5-14, 5-16

1шт.

17

Swivel, Hydraulic Figure 7-10

1шт.

18

Blade, Dozer Figures 5-8, 7-4, 8-22

1шт.

19

Cylinder Assy Figure 7-12

1шт.

20

Undercarriage Figure 5-2

1шт.

21

Ring, Slewing Figure 9-2

1шт.

22

Moto-Reduction Gear Figure 6-8

1шт.

23

Tank, Fuel Figure 3-2

1шт.

24

Cylinder Assy Figure 8-94

1шт.

25

Lamp, Head Figure 4-22

1шт.

26

Tooth Pg. 9-

1шт.

27

Bucket Pg. 9-

1шт.

28

Control Assy Figure 9-74

1шт.

29

Cylinder Assy Figure 8-102

1шт.

30

Dipper Figures 9-70, 9-72

1шт.

31

Cylinder Assy Figure 8-98

1шт.

32

Lamp, Work Figure 4-22

1шт.

33

Circuit, Hydraulic Figures 8-16, 8-40, 8-42, 8-58

1шт.

34

Boom Figure 9-68

1шт.

35

Tank, Oil Figure 8-2

1шт.

36

Valve, By-Pass Figure 8-38

1шт.

37

Pump, Hydraulic Figures 8-60 - 8-66

1шт.

38

Muffler Figure 2-8

1шт.

39

Cab Figures 9-54 - 9-62

1шт.

40

Door, Cab Figures 9-64, 9-66

1шт.

41

Seat Figures 9-38, 9-40

1шт.

42

Handle, Control Figure 8-88

1шт.

43

Floor, Cab Figure 9-24

1шт.

44

Unit, Heater Figures 9-44, 9-46

1шт.

45

Control Assy Figure 9-26

1шт.

46

Control Assy Figure 9-28

1шт.

47

Panel, Instrument Figures 4-14, 4-16

1шт.

48

Circuit, Electrical Figures 4-6, 4-8, 4-18, 4-20

1шт.

49

Circuit, Hydraulic Figures 8-8 - 8-38

1шт.
