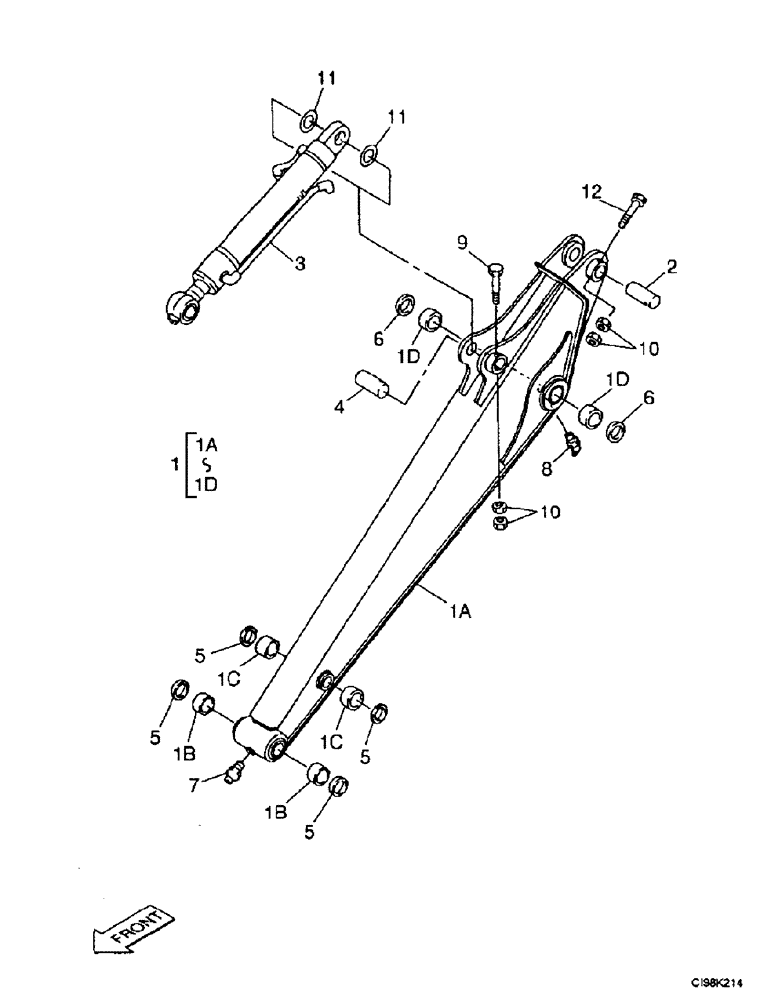

Запчасти Case 9007B (9-72) - DIPPER (2.18M - 85-7/8 IN) (09) - CHASSIS

1

166434A1

DIPPER

Long reach arm, Consists Of Ref. Numbers : 1A-1D

1шт.

1a

NSS

NOT SOLD SEPARAT

Dipper

1шт.

1b

166389A1

BUSHING,50mm ID x 60mm OD x 40mm L

Bushing

2шт.

1c

166392A1

BUSHING

2шт.

1d

150577A1

BUSHING

2шт.

2

166402A1

PIN

1шт.

3

166432A1

BUCKET CYLINDER

Bucket See Figure : 8-102

1шт.

4

166391A1

PIN

1шт.

5

166463A1

SEAL

4шт.

6

166464A1

SEAL

2шт.

7

153630A1

LUBE NIPPLE

Fitting, Grease

1шт.

8

153631A1

LUBE NIPPLE,1/8"-27 NPT

Fitting, Grease

1шт.

9

514-862

BOLT,Hex, M12 x 1.25 x 110mm, Cl 10.9

Screw M12 x 110; 10.9

1шт.

10

829-11412

NUT,M12 x 1.25, Cl 10

4шт.

11

166404A1

ADJUSTING PLATE

Washer

2шт.

12

514-862

BOLT,Hex, M12 x 1.25 x 110mm, Cl 10.9

Screw M12 x 110; 10.9

1шт.
