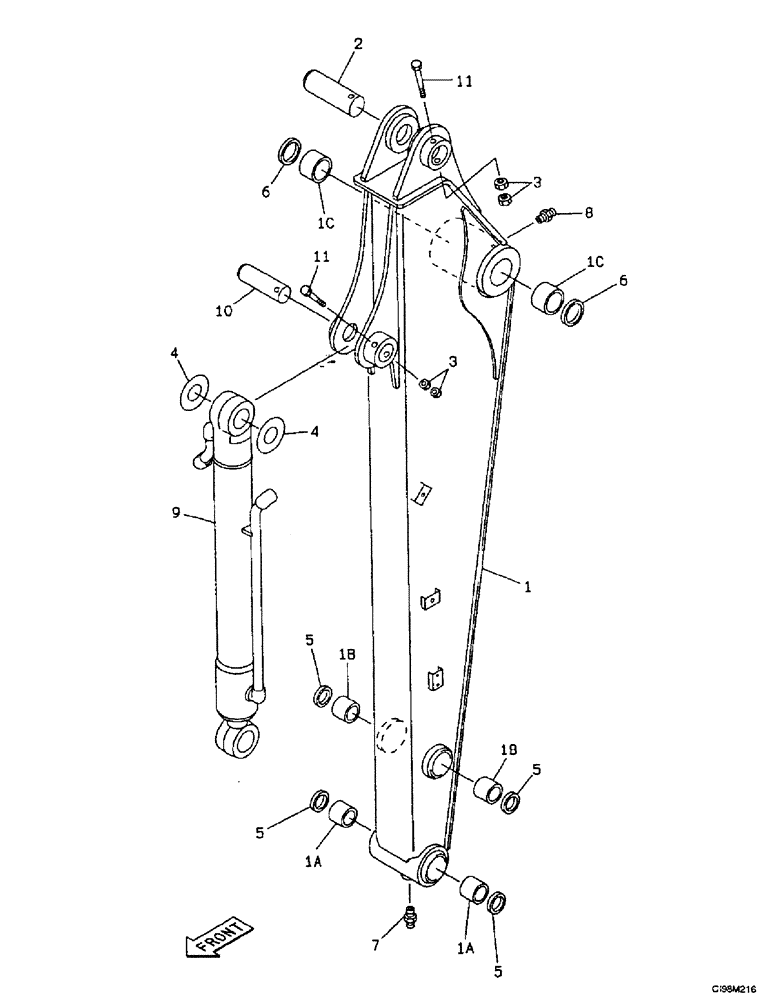

Запчасти Case 9007B (9-70) - DIPPER (1.74M - 68-5/8 IN) (09) - CHASSIS

166429A1

DIPPER

standard

1шт.

1

NSS

NOT SOLD SEPARAT

Dipper, Consists of: Ref. nos. 1A, 1B, 1C

1шт.

1a

166389A1

BUSHING,50mm ID x 60mm OD x 40mm L

Bushing

2шт.

Part of Dipper, not serviced separately

1шт.

1b

166392A1

BUSHING

2шт.

Part of Dipper, not serviced separately

1шт.

1c

150577A1

BUSHING

2шт.

Part of Dipper, not serviced separately

1шт.

2

166391A1

PIN

1шт.

3

829-11412

NUT,M12 x 1.25, Cl 10

4шт.

4

166404A1

ADJUSTING PLATE

Washer

2шт.

5

166463A1

SEAL

4шт.

6

166464A1

SEAL

2шт.

7

153630A1

LUBE NIPPLE

Fitting, Grease

1шт.

8

153631A1

LUBE NIPPLE,1/8"-27 NPT

Fitting, Grease

1шт.

9

166432A1

BUCKET CYLINDER

Bucket See Figure : 8-102

1шт.

10

166402A1

PIN

1шт.

11

514-862

BOLT,Hex, M12 x 1.25 x 110mm, Cl 10.9

Screw M12 x 110; 10.9

2шт.
