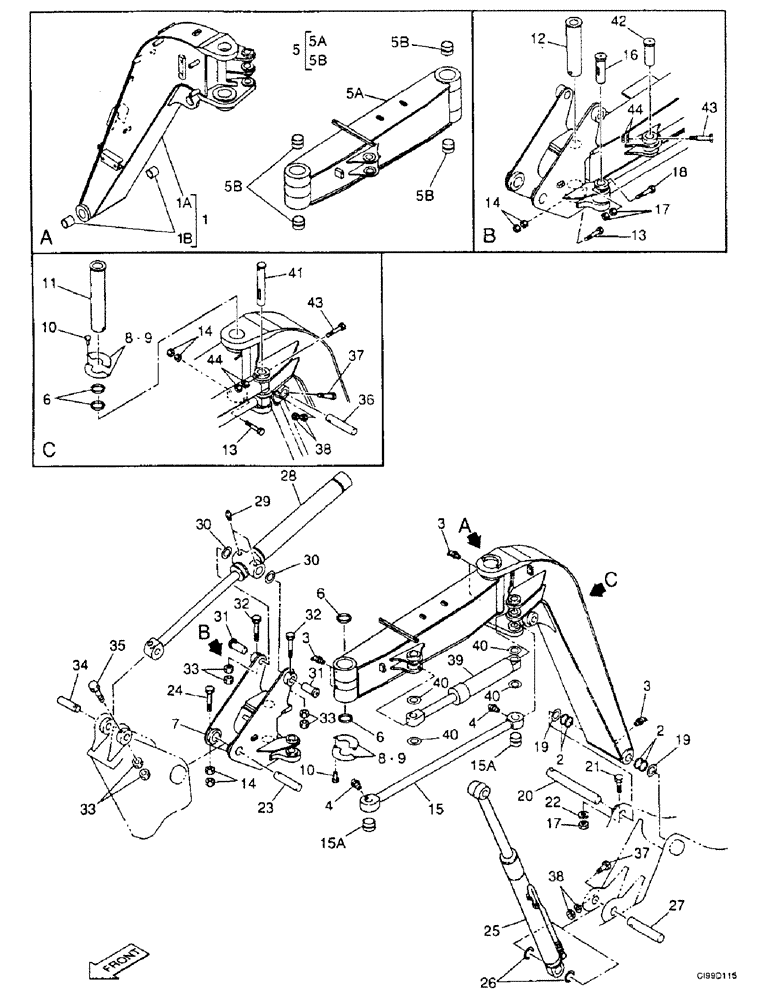

Запчасти Case 9007B (9-68A) - OFFSET BACKHOE BOOM, (09) - CHASSIS

1

168577A1

BOOM

Consists Of Ref. Numbers : 1A, 1B

1шт.

1a

NSS

NOT SOLD SEPARAT

1шт.

1b

166407A1

BUSHING

2шт.

2

160674A1

SEAL,65mm ID x 80mm OD x 5mm Thk

4шт.

3

153631A1

LUBE NIPPLE,1/8"-27 NPT

5шт.

4

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

2шт.

5

168602A1

ARM

Consists Of Ref. Numbers : 5A, 5B

1шт.

5a

NSS

NOT SOLD SEPARAT

1шт.

5b

168532A1

BUSHING

4шт.

6

159649A1

SEAL,100mm ID x 115mm OD x 5mm Thk

4шт.

7

168589A1

ELEC SUPPORT PLATE

1шт.

8

168621A1

SHIM

0,6 mm (0,024 in)

1шт.

9

168622A1

SHIM

1.0 mm (0,039 in)

1шт.

10

168616A1

RIVET

4шт.

11

168533A1

PIN

1шт.

12

168534A1

PIN

1шт.

13

514-1037

BOLT,Hex, M16 x 1.5 x 170mm, Cl 10.9

Hex, M16 x 1.5 x 170, 10.9

2шт.

14

829-13416

NUT,M16 x 1.5, Cl 10

M16; 10

6шт.

15

168543A1

TRUSS ROD

Consists Of Ref. Number : 15A

1шт.

15a

168513A1

BUSHING

2шт.

16

168546A1

PIN

1шт.

17

829-11412

NUT,M12 x 1.25, Cl 10

3шт.

18

514-866

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8, Full Thd

1шт.

19

161643A1

SHIM,66mm ID x 130mm OD x 1.2mm Thk

1шт.

20

166412A1

PIN

1шт.

21

168554A1

BOLT

1шт.

22

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

23

168549A1

PIN

1шт.

24

514-1035

BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9

Hex, M16 x 1.5 x 120, 10.9

1шт.

25

166430A1

HYDRAULIC CYLINDER

See Figure : 8-78

1шт.

25

168585A1

HYDRAULIC CYLINDER

See Figure : 8-80B

1шт.

26

152661A1

SHIM,66mm ID x 120mm OD x 1.2mm Thk

1.30 mm (0,051 in)

1шт.

27

166413A1

PIN

1шт.

28

168606A1

HYDRAULIC CYLINDER

1шт.

28

168587A1

HYDRAULIC CYLINDER

See Figure : 8-84D

1шт.

29

153630A1

LUBE NIPPLE

2шт.

30

168531A1

SHIM

1шт.

31

168545A1

PIN

2шт.

32

514-866

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8, Full Thd

2шт.

33

829-11412

NUT,M12 x 1.25, Cl 10

6шт.

34

166391A1

PIN

1шт.

35

514-862

BOLT,Hex, M12 x 1.25 x 110mm, Cl 10.9

M12 x 110; 10.9

1шт.

36

166406A1

PIN

1шт.

37

514-1111

BOLT,Hex, M16 x 1.5 x 130mm, Cl 10.9

Hex, M16 x 1.5 x 130, 10.9

2шт.

38

829-13416

NUT,M16 x 1.5, Cl 10

M16; 10

4шт.

39

168538A1

HYDRAULIC CYLINDER

1шт.

40

166403A1

WASHER

1шт.

41

168548A1

PIN

1шт.

42

168547A1

PIN

1шт.

43

514-866

BOLT,Hex, M12 x 1.25 x 120mm, Cl 8.8, Full Thd

2шт.

44

829-11412

NUT,M12 x 1.25, Cl 10

4шт.
