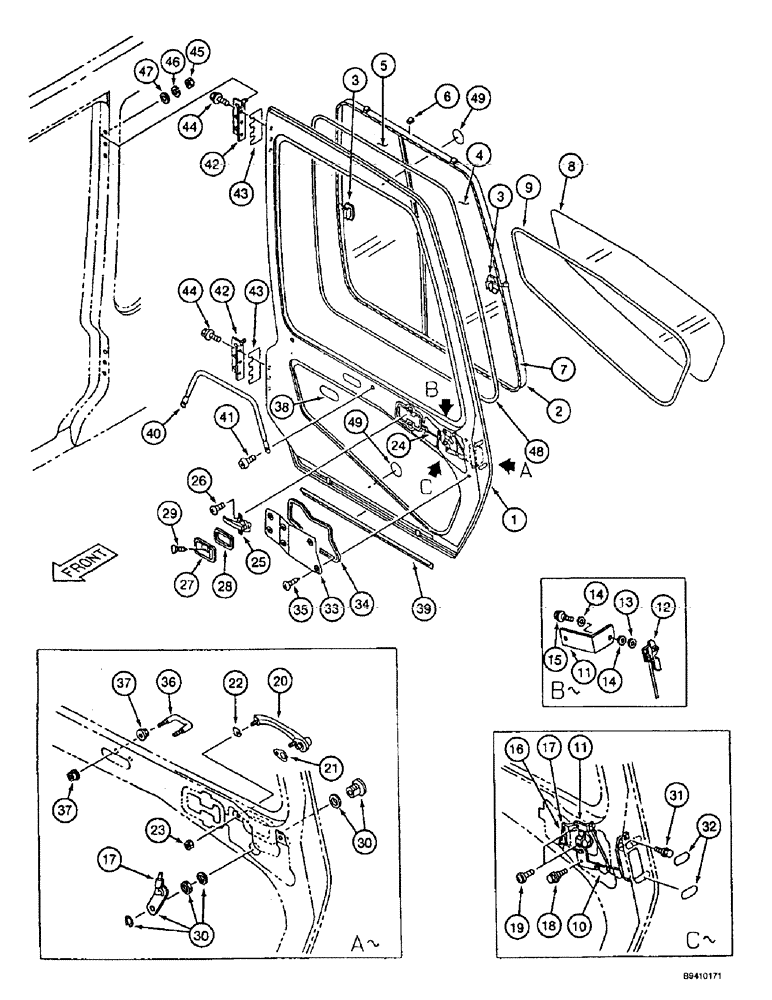

Запчасти Case 9007B (9-64) - CAB DOOR (09) - CHASSIS

166158A1

DOOR ASSY.

Consists of: Ref. 1 - 49

1шт.

1

167464A1

CABIN DOOR

Cab, Replaces 159587A1

1шт.

162173A1

WINDOW ASSY

Consists of: Ref. 2 - 5

1шт.

In the text between Ref. 1 and Ref. 2 is 162173A1 upper window assy. The strip that runs vertically down the center of the window (strip that separates the two sliding windows as they pass each other) is not serviced separately.

1шт.

2

NSS

NOT SOLD SEPARAT

Frame

1шт.

3

162829A1

LOCK

Latching Device

2шт.

4

162180A1

WINDOW

Glass

1шт.

5

162181A1

WINDOW

Glass

1шт.

6

159543A1

SPACER

8шт.

7

159590A1

DOOR SEAL

Gasket, Mounting

1шт.

8

162182A1

WINDOW

Glass

1шт.

9

159551A1

WEATHERSTRIP

Mounting

1шт.

10

159554A1

LATCH ASSY.

Device

1шт.

11

159555A1

SUPPORT

Mount

1шт.

12

159560A1

LEVER

Plate, Catch

1шт.

13

159582A1

WASHER

1шт.

14

159583A1

WASHER

2шт.

15

159584A1

FLANGE BOLT,Shldr

Screw

1шт.

16

159559A1

LATCH

Device

1шт.

17

159556A1

PITMAN

Pivot

2шт.

18

159574A1

FLANGE BOLT,Shldr

Screw

1шт.

19

159545A1

SELF-TAP SCREW

2шт.

20

159566A1

HANDLE

External

1шт.

21

159567A1

SPACER

Seal

1шт.

22

159568A1

SPACER

Seal

1шт.

23

159585A1

NUT

2шт.

24

159557A1

THREADED ROD

Link

1шт.

25

159563A1

HANDLE

Inner

1шт.

26

159589A1

SCREW,Pan Hd

2шт.

27

159561A1

BEZEL

Cover

1шт.

28

159562A1

LINING

Seal

1шт.

29

159576A1

SELF-TAP SCREW,Oval Hd

1шт.

30

159558A1

LOCK ASSY

Latch

1шт.

Another syle lock is part no 167465A1

1шт.

31

161377A1

BOLT

Screw

4шт.

32

159572A1

SEAL

2шт.

33

159552A1

COVER

Plate

1шт.

34

159553A1

DOOR SEAL

1шт.

35

159545A1

SELF-TAP SCREW

Replaces 159577A1

6шт.

36

159570A1

U-BOLT

BOLT "U" Bail

1шт.

37

159579A1

NUT

4шт.

38

159571A1

GROMMET

1шт.

39

159588A1

DOOR SEAL

Rubber

1шт.

40

159569A1

HANDLE

1шт.

41

159586A1

BOLT,Hex Skt, M10 x 1.5 x 25mm

Screw

2шт.

42

159564A1

HINGE

2шт.

43

159565A1

ADJUSTING PLATE

Shim

2шт.

44

159544A1

BOLT

Screw

6шт.

45

159578A1

NUT

6шт.

46

159580A1

LOCK WASHER

Lock

6шт.

47

159581A1

WASHER

6шт.

48

159549A1

SEAL

Gasket, Mounting

1шт.

49

159573A1

DOOR SEAL

Stop

2шт.
