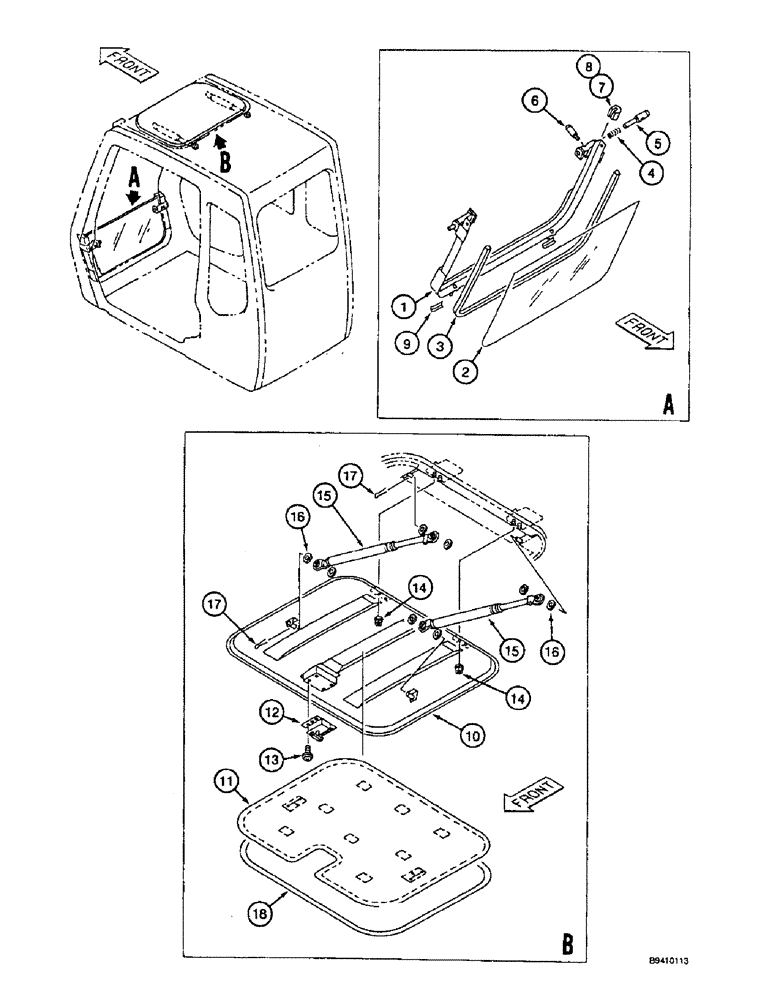

Запчасти Case 9007B (9-62) - CAB AND GLASS - OPENING ROOF (09) - CHASSIS

162167A1

WINDOW ASSY

Window, Consists Of Ref. Numbers : 1-9

1шт.

1

161443A1

WINDOW FRAME

1шт.

2

162174A1

GLASS

1шт.

3

161444A1

SEAL, GLASS

Gasket, Mounting

1шт.

4

161436A1

SPRING

2шт.

5

161437A1

STEM

Pin

2шт.

6

161438A1

LEVER

Handle

2шт.

7

161445A1

SEAL

1шт.

8

161446A1

SEAL

1шт.

9

161447A1

TAPE

Trim

2шт.

162171A1

ROOF

Assy, Consists Of Ref. Numbers : 10-17

1шт.

10

161449A1

ROOF

1шт.

11

161450A1

INSULATOR

Lining, Opening Roof

1шт.

12

161451A1

LATCH ASSY.

Device

1шт.

13

161452A1

SCREW

4шт.

14

161453A1

FLANGE NUT

4шт.

15

161454A1

SHOCK ABSORBER

Cylinder, Gas Strut

2шт.

16

161389A1

WASHER

8шт.

17

161455A1

PIN, SPLIT (COTTER)

PIN, COTTER

4шт.

18

161335A1

SEAL

RUBBER SEAL Gasket, Mounting

1шт.
