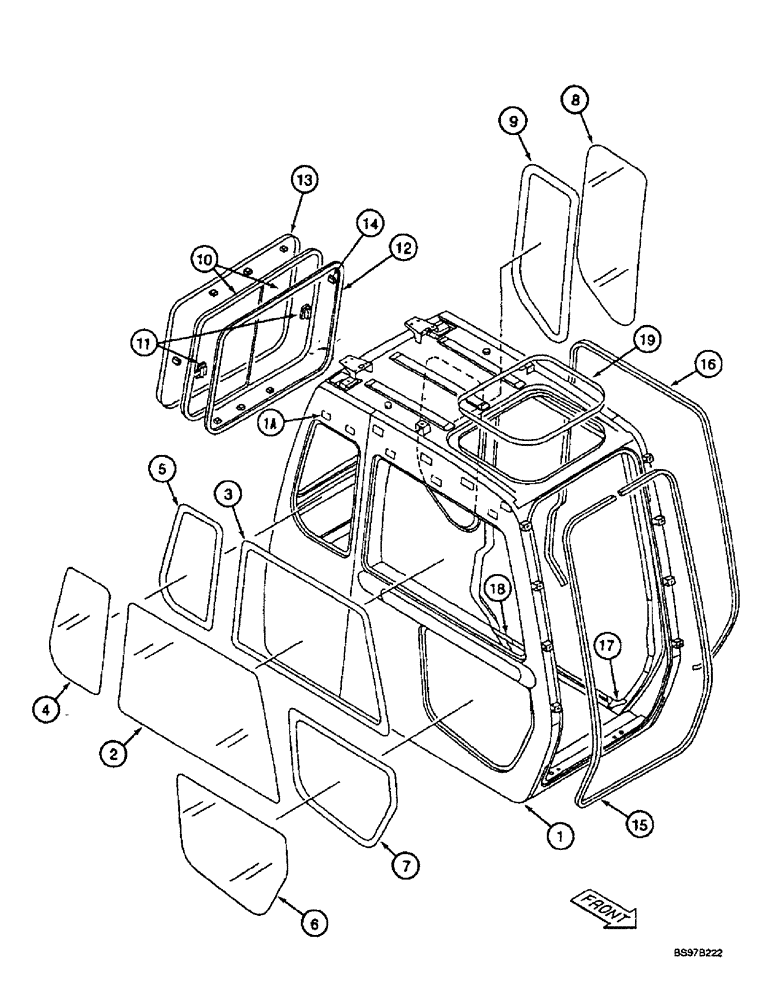

Запчасти Case 9007B (9-54) - CAB AND GLASS (09) - CHASSIS

166114A1

CAB

Assy, Consists Of Figures : 9-59 - 9- Consists Of Ref. Numbers : 1-19

1шт.

1

164949A1

CAB

Consists Of Ref. Number : 1A

1шт.

1a

164959A1

NUT

19шт.

2

162175A1

GLASS

1шт.

3

161325A1

SEALING STRIP

Gasket, Mounting

1шт.

4

162177A1

GLASS

1шт.

5

161326A1

SEAL, GLASS

Gasket, Mounting

1шт.

6

162176A1

GLASS

1шт.

7

161327A1

SEAL, GLASS

Gasket, Mounting

1шт.

8

162179A1

GLASS

1шт.

9

161328A1

SEAL, GLASS

Gasket, Mounting

1шт.

162168A1

WINDOW ASSY

Rear Consists Of Ref. Numbers : 10, 11

2шт.

10

162178A1

GLASS

2шт.

11

162829A1

LOCK

Latching Device

1шт.

12

161329A1

SEAL

Gasket, Mounting

1шт.

13

161330A1

RUBBER BLOCK

Support

1шт.

14

159543A1

SPACER

8шт.

15

161331A1

SEAL

RUBBER SEAL Gasket, Mounting, Windshield

1шт.

16

161332A1

DOOR SEAL

RUBBER SEAL Gasket, Mounting, Door

1шт.

17

161333A1

CAP

Plug, Front

1шт.

18

161334A1

CAP

Plug, Rear

1шт.

19

161335A1

SEAL

RUBBER SEAL Gasket, Mounting

1шт.
