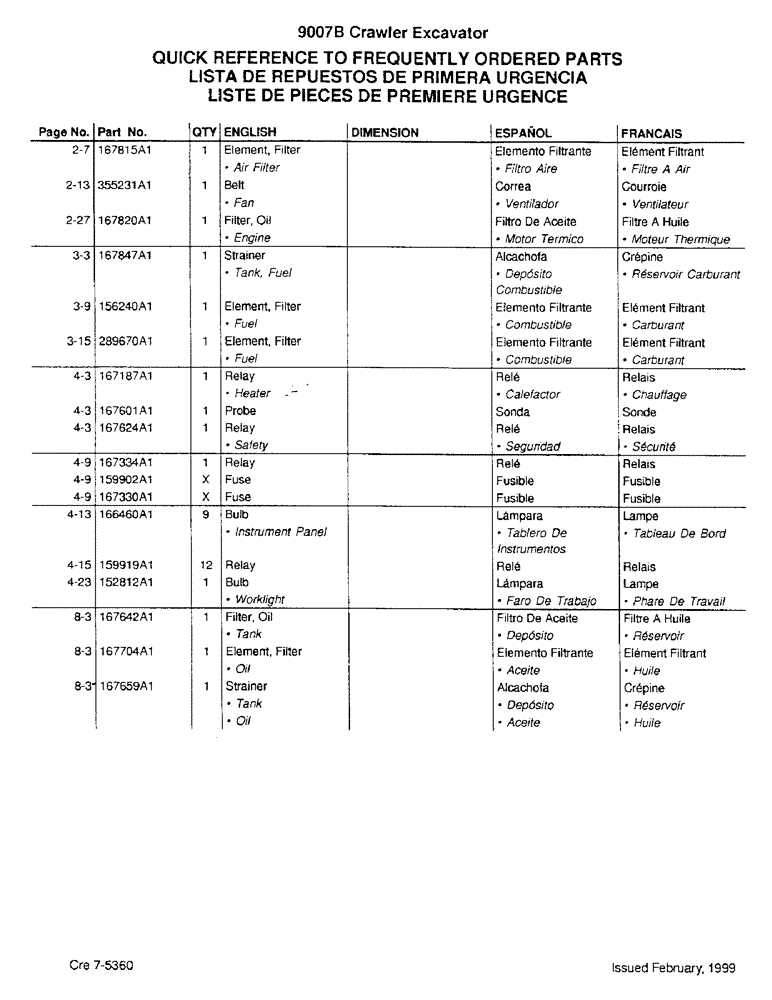

Запчасти Case 9007B (004) - QUICK REFERENCE TO FREQUENTLY ORDERED PARTS (00) - PICTORIAL INDEX

167815A1

AIR FILTER

Element, Filter, Figure 2-6 Air Filter

1шт.

355231A1

BELT

Figure 2-12 Fan

1шт.

87409537

ENGINE OIL FILTER

Filter, Oil, Figure 2-26 Engine

1шт.

167847A1

FILTER

Strainer, Figure 3-2 Tank, Fuel

1шт.

156240A1

FILTER BOWL

Element, Filter, Figure 3-8 Fuel

1шт.

289670A1

ELEMENT

Filter, Figure 3-14 Fuel

1шт.

167187A1

RELAY

Figure 4-2 Heater

1шт.

167601A1

THERMOSTATIC SWITCH

Probe Figure 4-2

1шт.

167624A1

RELAY,24V

Figure 4-2 Safety

1шт.

167334A1

RELAY

Battery, Figure 4-8

1шт.

159902A1

FUSE

65A Fuse - starter, Figure 4-8

1шт.

167330A1

FUSE

Figure 4-8

1шт.

166460A1

HEADLIGHT

Bulb, Figure 4-12 Instrument Panel

9шт.

159919A1

RELAY

Figure 4-14

12шт.

152812A1

BULB

Figure 4-22 Worklight

1шт.

167642A1

HYDRAULIC OIL FILTER

Filter, Oil, Figure 8-2 Tank

1шт.

167704A1

HYDRAULIC OIL FILTER

Element, Filter, Figure 8-2 Oil

1шт.

167659A1

STRAINER ASSY.

Strainer, Figure 8-2 Tank Oil

1шт.
