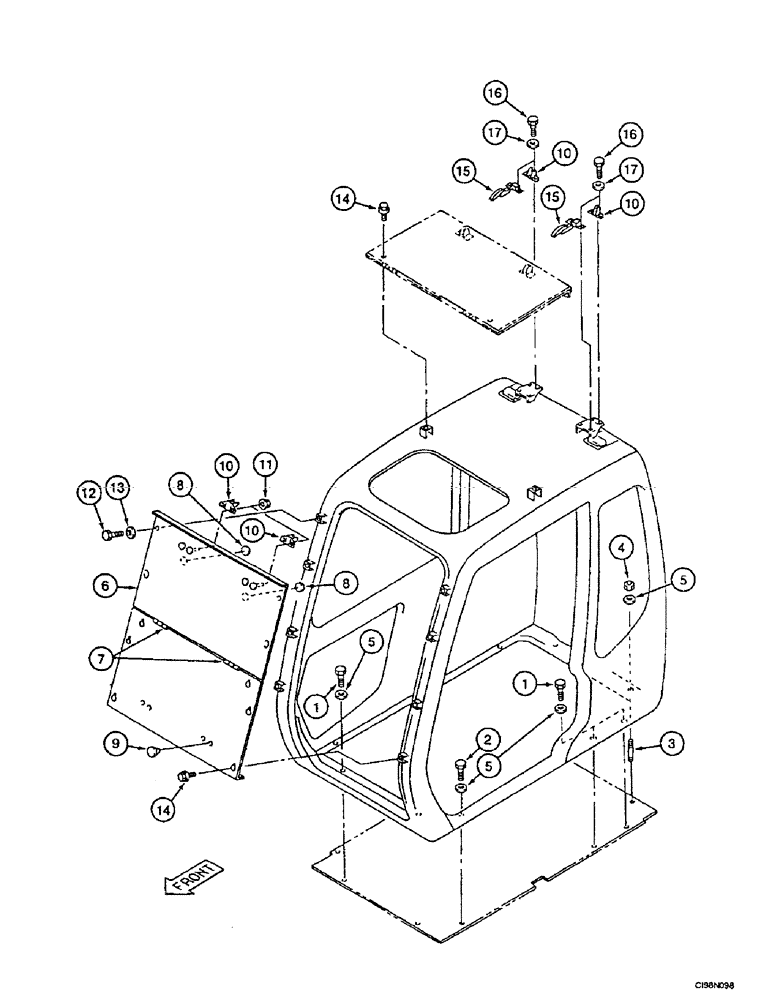

Запчасти Case 9007B (9-52) - CAB GUARD - ANTI-VANDALISM (09) - CHASSIS

1

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

6шт.

2

862-12020

HEX SOC SCREW,M12 x 20mm, Cl 12.9

1шт.

3

159850A1

BOLT

Stud

2шт.

4

829-1412

NUT,M12, Cl 10.9

2шт.

5

150811A1

WASHER

M12

9шт.

6

161803A1

COVER

Guard, Consists Of Ref. Number : 7

1шт.

7

152590A1

HINGE

2шт.

8

151756A1

PLATE WASHER

2шт.

9

161804A1

RUBBER BLOCK

Plug

4шт.

10

150856A1

STOP LOCK

Fastener

4шт.

11

150469A1

FLANGE NUT

Lock

4шт.

12

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

14

162880A1

BOLT

Screw

8шт.

15

150854A1

FASTENER

Fastener

2шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

8шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
