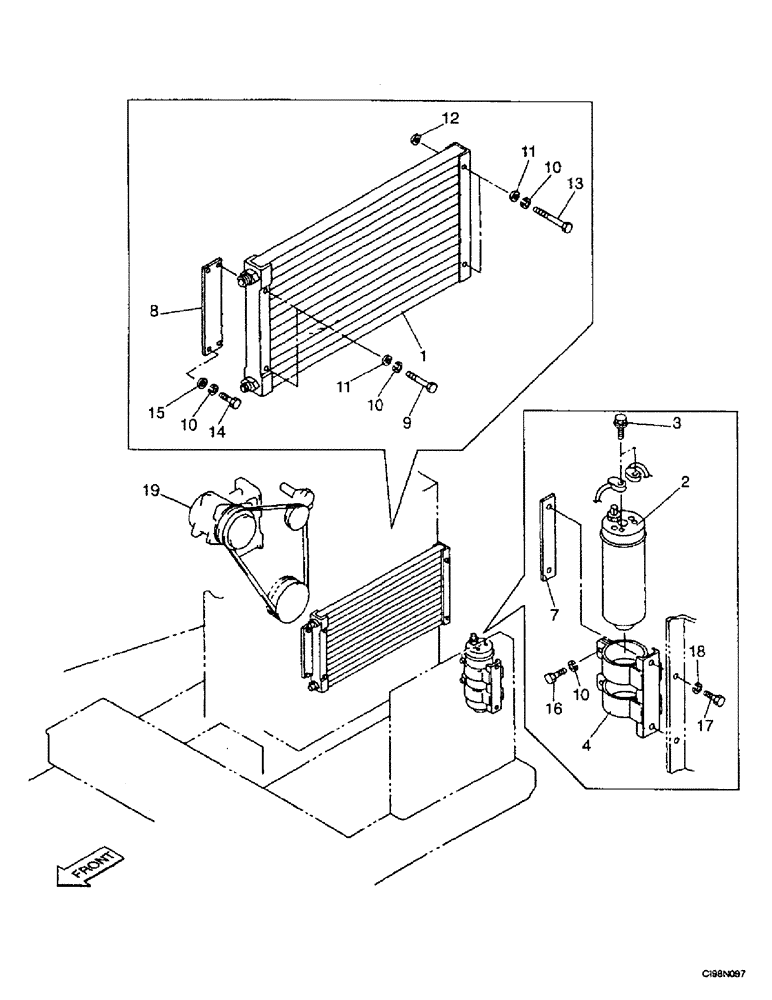

Запчасти Case 9007B (9-48) - AIR CONDITIONING - CONDENSER (09) - CHASSIS

1

168168A1

CONDENSER

1шт.

2

159634A1

RECEIVER-DRYER

Dryer

1шт.

2

KHR3751

RECEIVER-DRYER

P.I.N. DAC0072195 AND AFTER (includes high/low press switch)

1шт.

3

162043A1

BOLT,Spcl, M6

Screw

2шт.

4

159635A1

SUPPORT

Support

1шт.

7

167278A1

BRACKET

Support

1шт.

8

168169A1

BRACKET

Support

1шт.

9

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

10

892-11006

LOCK WASHER,M6

8шт.

11

153360A1

WASHER

4шт.

12

168173A1

WASHER

2шт.

13

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

2шт.

14

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

18

892-11008

LOCK WASHER,8mm ID

2шт.

19

REF

INSTRUCTION

Compressor, See Figure : 2-46

1шт.
