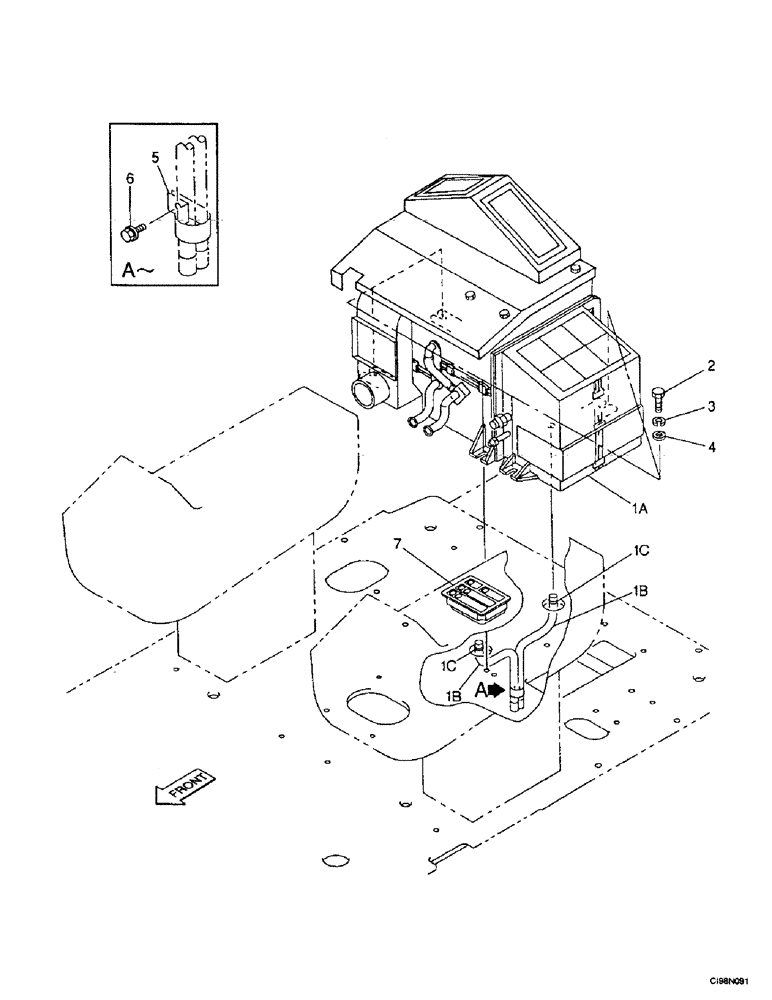

Запчасти Case 9007B (9-46) - AIR CONDITIONING - CAB (09) - CHASSIS

1a

168181A1

AIR CONDITIONER

1шт.

1b

159617A1

HOSE,322.00 mm

2шт.

1c

159622A1

MOUNTING CLIP

Clamp

2шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

5

159149A1

COLLAR

Clip, Mounting

1шт.

6

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

1шт.

7

REF

INSTRUCTION

Panel, Instrument, See Figure : 4-17

1шт.

4

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

8

163186A1

FILTER

Not illustrated

1шт.

9

165085A1

CAB FILTER

Not illustrated

1шт.
