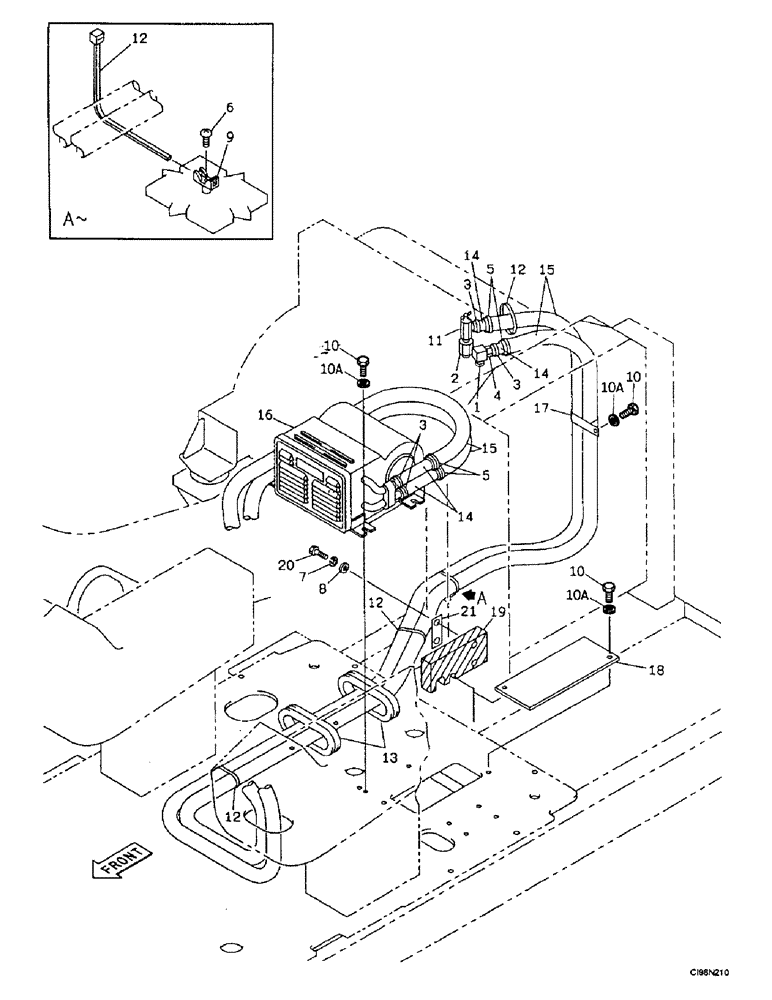

Запчасти Case 9007B (9-44) - HEATING - CAB (09) - CHASSIS

1

167260A1

ELBOW

1шт.

2

167443A1

SOCKET

Fitting

1шт.

3

157271A1

CLIP

Clamp

4шт.

4

159655A1

ELBOW

Fitting

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie, 15 inch, nylon

4шт.

6

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10.9

1шт.

7

892-11008

LOCK WASHER,8mm ID

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

9

150860A1

COLLAR

Base

1шт.

10

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

7шт.

10a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

7шт.

11

152664A1

VALVE

Shut-Off

1шт.

12

D150798

STRAP

Clip, Mounting

4шт.

13

167225A1

GROMMET

Seal

2шт.

14

168174A1

HOSE

2шт.

15

157921A1

PLASTIC-RUBBER TUBE,22 mm ID, 27 mm OD, 3300 mm Length

Sleeve, Hose

2шт.

16

152815A1

HEATER,Assembly, Cab

Unit, Consists Of Ref. Numbers : 16A, 16B, 16C, 16D

1шт.

16a

163619A1

MOTOR, ELECTRIC

Not Illustrated

1шт.

16b

163618A1

RESISTOR

Not Illustrated

1шт.

16c

166058A1

BLOWER

Fan, Not Illustrated

1шт.

16d

166059A1

BLOWER

Fan, Not Illustrated

1шт.

17

152762A1

CLAMP

Bracket

1шт.

18

159950A1

COVER

Sheet

1шт.

19

167282A1

SEAL

Insulation

1шт.

20

827-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 10.9

2шт.

21

167292A1

SEAL

1шт.
