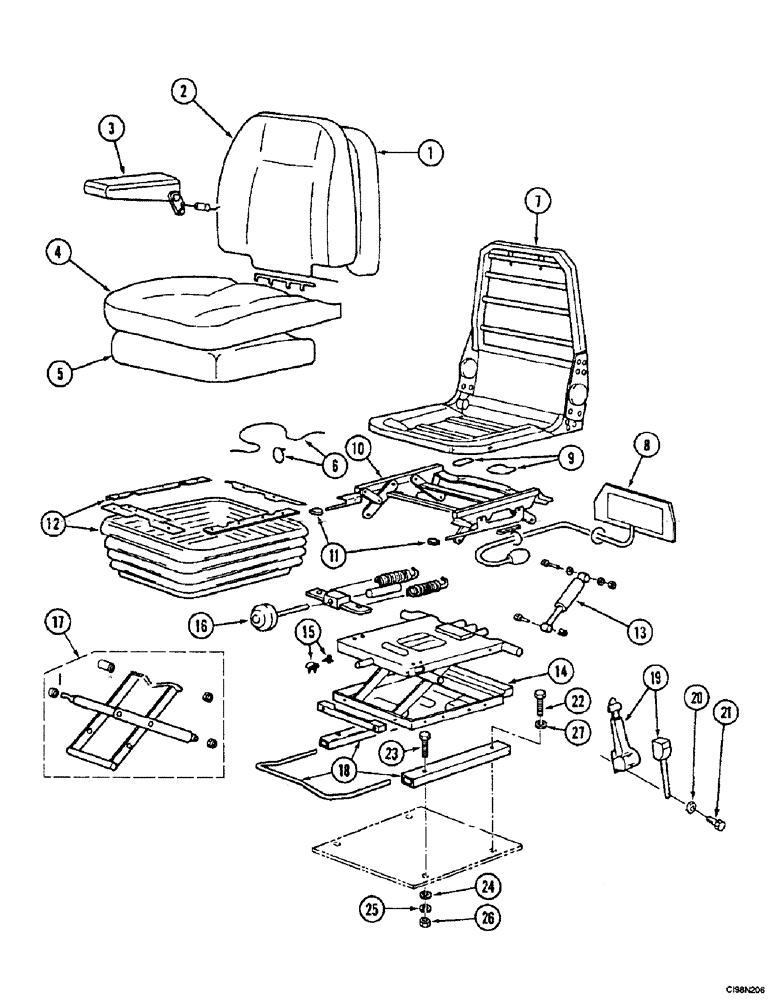

Запчасти Case 9007B (9-38) - SEAT (09) - CHASSIS

300642A1

SEAT ASSY.

With Belt, Seat With Suspension Consists Of Ref. Numbers : 1-21

1шт.

307040A1

SEAT ASSY.

Without Belt, Seat Without Suspension Consists Of Ref. Numbers : 1, 2, 4 - 8

1шт.

1

P4841461

CUSHION

Backrest, inner

1шт.

2

307042A1

DRIVER'S SEAT COVER

Cushion, outer Backrest

1шт.

3

307048A1

ARMREST ASSY.

Right Hand and Left Hand

1шт.

4

P2547002

SEAT COVER

Cushion

1шт.

5

P4841462

CUSHION

Seat

1шт.

6

P2447088

KIT

Parts

1шт.

7

307043A1

FRAMEWORK

Frame

1шт.

8

307044A1

KIT

Parts, Backrest Adjustment

1шт.

307045A1

KIT

Parts, Consists Of Ref. Numbers : 9, 10, 11

1шт.

9

307046A1

KIT

Spring

1шт.

10

NSS

NOT SOLD SEPARAT

Shock Absorber

1шт.

11

307047A1

SET OF PARTS

Handle

1шт.

12

307052A1

KIT

Boot

1шт.

307049A1

SUSPENSION

Suspension Assy, Consists Of Ref. Numbers : 13-17

1шт.

13

P4143253

SHOCK ABSORBER

1шт.

14

NSS

NOT SOLD SEPARAT

Suspension

1шт.

15

307050A1

KIT

Stop

1шт.

16

P2447086

KIT

Handle, Height Adjustment

1шт.

17

307051A1

BEARING ASSY

Parts, Height Adjustment

1шт.

18

307053A1

KIT

Rail, Slider And Horizontal Adjustment

1шт.

19

304621A1

SAFETY BELT

1шт.

20

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

21

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

22

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

2шт.

23

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

24

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

25

892-11008

LOCK WASHER,8mm ID

4шт.

26

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

27

892-11008

LOCK WASHER,8mm ID

2шт.
