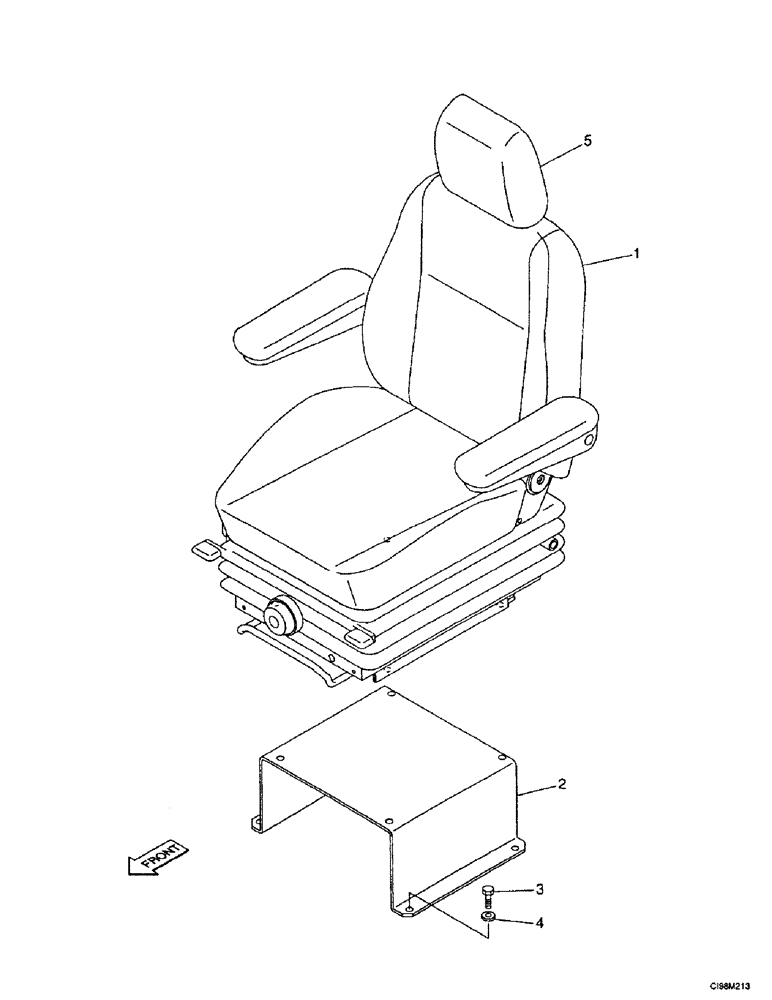

Запчасти Case 9007B (9-36) - SEAT SUPPORT (09) - CHASSIS

1

300642A1

SEAT ASSY.

See Figure : 9-38

1шт.

2

168424A1

BRACKET

Support, Seat

1шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

5

166096A1

HEADREST, SEAT

HEADREST

1шт.
