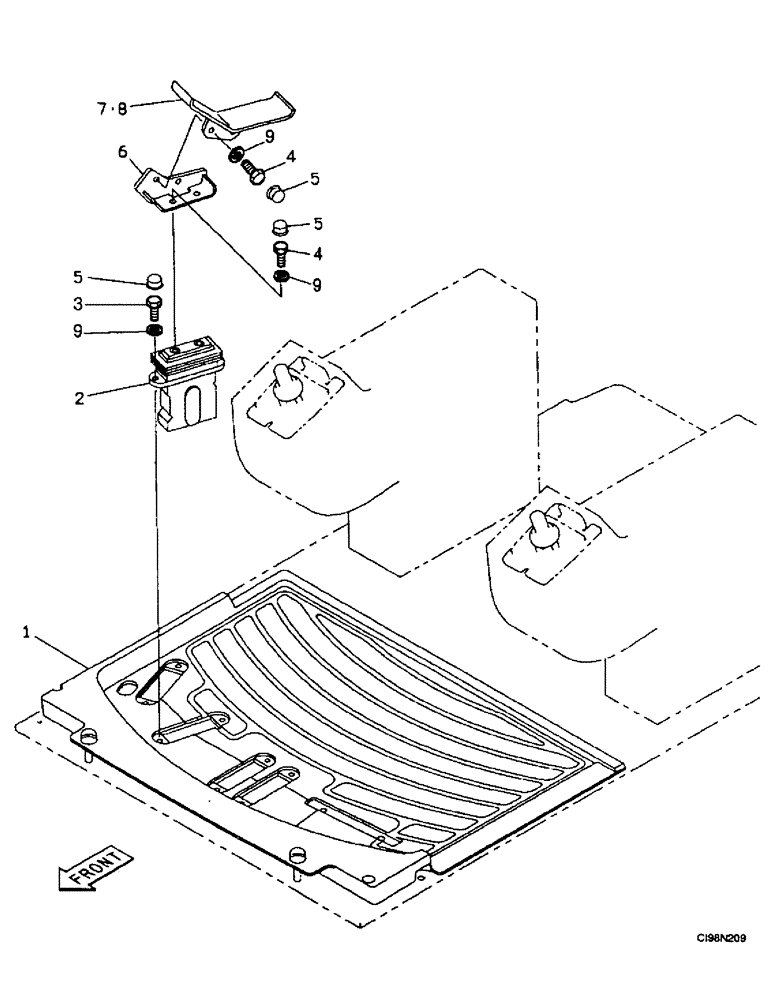

Запчасти Case 9007B (9-30) - OPTION CONTROL - OPERATORS COMPARTMENT (09) - CHASSIS

1

167711A1

FLOOR MAT

1шт.

2

166341A1

CONTROL BLOCK

Remote See Figure : 8-92

1шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

4шт.

5

159488A1

CAP

6шт.

6

161843A1

BRACKET

Support

1шт.

7

162963A1

PEDAL

1шт.

8

163782A1

SKIRT COVER

1шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.
