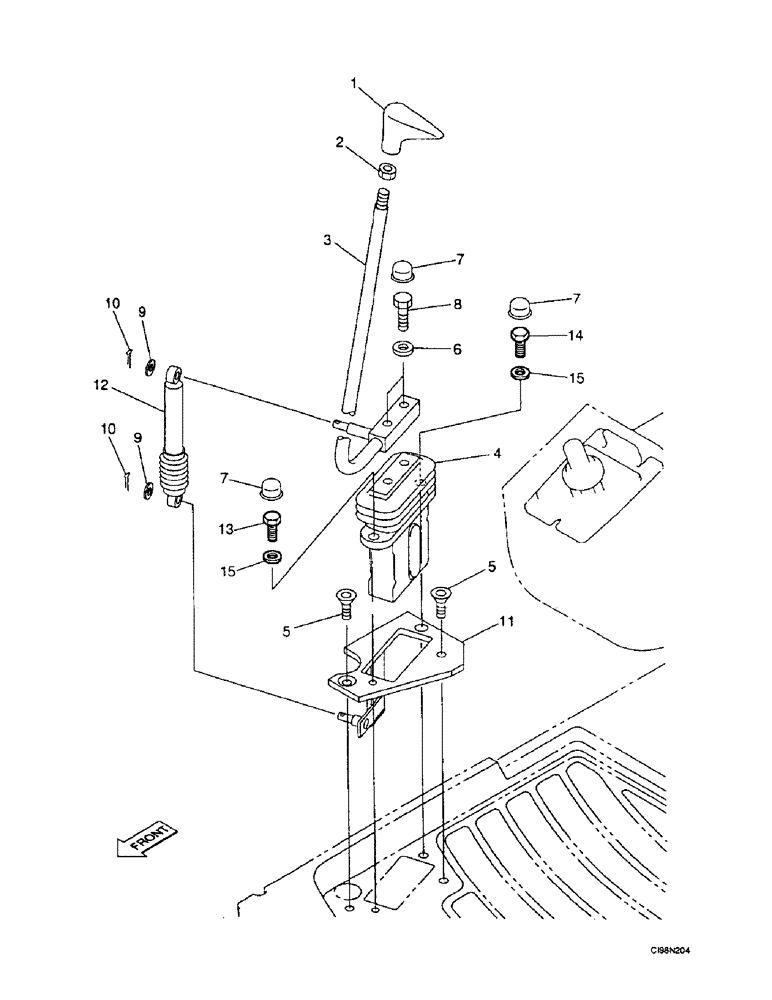

Запчасти Case 9007B (9-28) - DOZER BLADE CONTROL (09) - CHASSIS

1

165805A1

KNOB

Grip

1шт.

2

150373A1

NUT

M12; 12.9

1шт.

3

167709A1

LEVER

Control

1шт.

4

166341A1

CONTROL BLOCK

Remote See Figure : 8-92

1шт.

5

150403A1

SCREW,Spcl, Flat Hd Csk, M10 x 20mm

2шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

7

159488A1

CAP

4шт.

8

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

10

153077A1

COTTER PIN

Split

2шт.

11

167718A1

BRACKET

Support

1шт.

12

167854A1

SHOCK ABSORBER

Cylinder, Gas Strut

1шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
