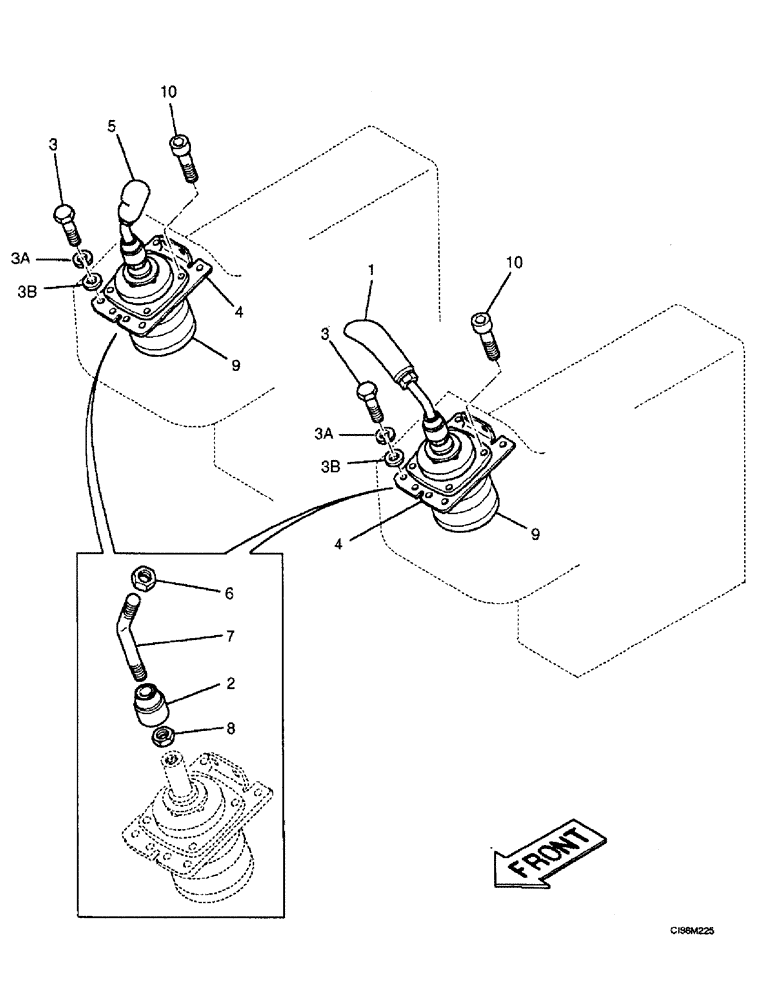

Запчасти Case 9007B (9-22) - HAND CONTROL VALVE - OPERATORS COMPARTMENT (09) - CHASSIS

1

159270A1

KNOB

Handle

1шт.

2

151302A1

CAP

Boot

2шт.

3

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

4шт.

3a

892-11006

LOCK WASHER,M6

4шт.

3b

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

4

159268A1

SUPPORT

Mount

2шт.

5

162363A1

KNOB

Handle

1шт.

6

159487A1

NUT

2шт.

7

159269A1

LEVER

Control

2шт.

8

151154A1

JAM NUT

2шт.

9

159700A1

CONTROL BLOCK

Remote See Figure : 8-88

2шт.

10

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

8шт.
