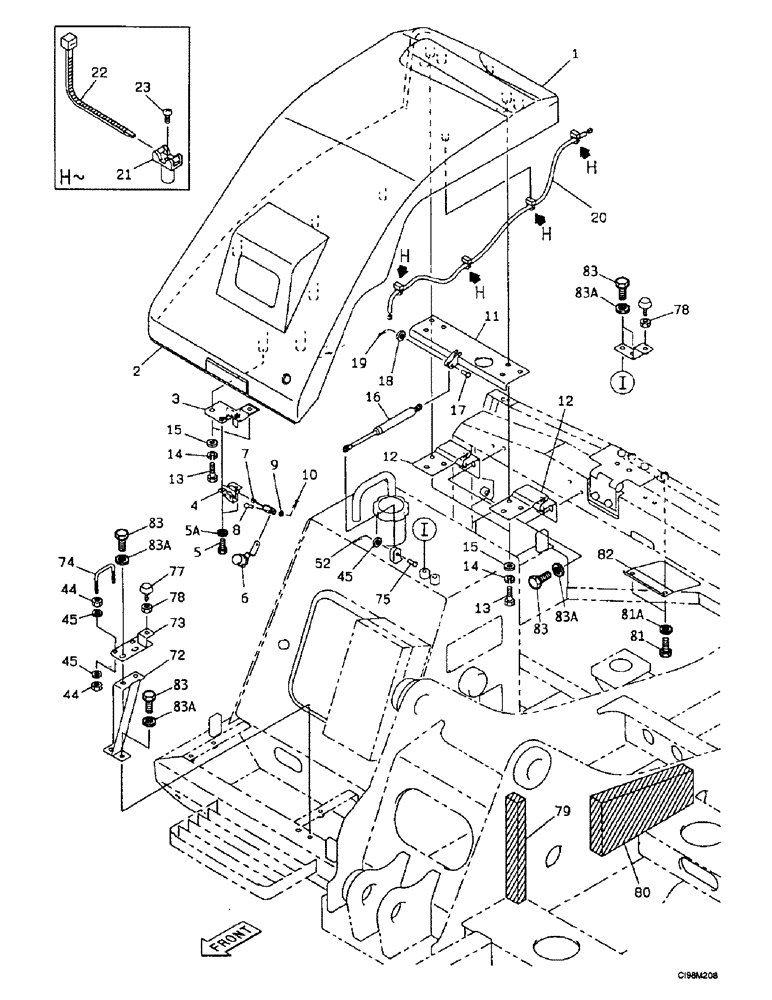

Запчасти Case 9007B (9-16) - BOX - UPPERSTRUCTURE CHASSIS (09) - CHASSIS

167811A1

COVER

Cowl Assy, Consists Of Ref. Numbers : 1-23

1шт.

1

167802A1

COVER

Cowl

1шт.

2

167737A1

LINING

Cowl

1шт.

3

167733A1

BRACKET

Mount

1шт.

4

167720A1

LOCK

Latching Device

1шт.

5

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

5a

892-11006

LOCK WASHER,M6

2шт.

6

167725A1

LOCK

Plate, Catch

1шт.

7

167729A1

CABLE ASSY.

1шт.

8

167184A1

HEADED PIN

Split

1шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

10

167647A1

SPLIT PIN/SAFETY PIN

Split

1шт.

11

167728A1

BRACKET

Support

1шт.

12

167732A1

HINGE

2шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

14

892-11010

LOCK WASHER,M10

8шт.

16

167730A1

GAS STRUT

Cylinder, Gas Strut

1шт.

17

167185A1

HEADED PIN

Split

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

19

153077A1

COTTER PIN

1шт.

20

167822A1

HARNESS

1шт.

21

150860A1

COLLAR

Base

4шт.

22

150496A1

MOUNTING CLIP

Clip, Mounting

4шт.

23

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

10.9

4шт.

44

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

45

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

52

153077A1

COTTER PIN

1шт.

72

167745A1

BRACKET

Support

1шт.

73

167734A1

BRACKET

Support

1шт.

74

167735A1

HOOK

Bail

1шт.

75

167185A1

HEADED PIN

Split

1шт.

77

167719A1

STOP

1шт.

78

153604A1

NUT

2шт.

79

167791A1

FOAM INSULATION

Insulation

1шт.

80

167766A1

NOISE PROTECTION

Insulation

1шт.

81

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

81a

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

2шт.

82

167797A1

COVER

Sheet

1шт.

83

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

8шт.

83a

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

8шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
