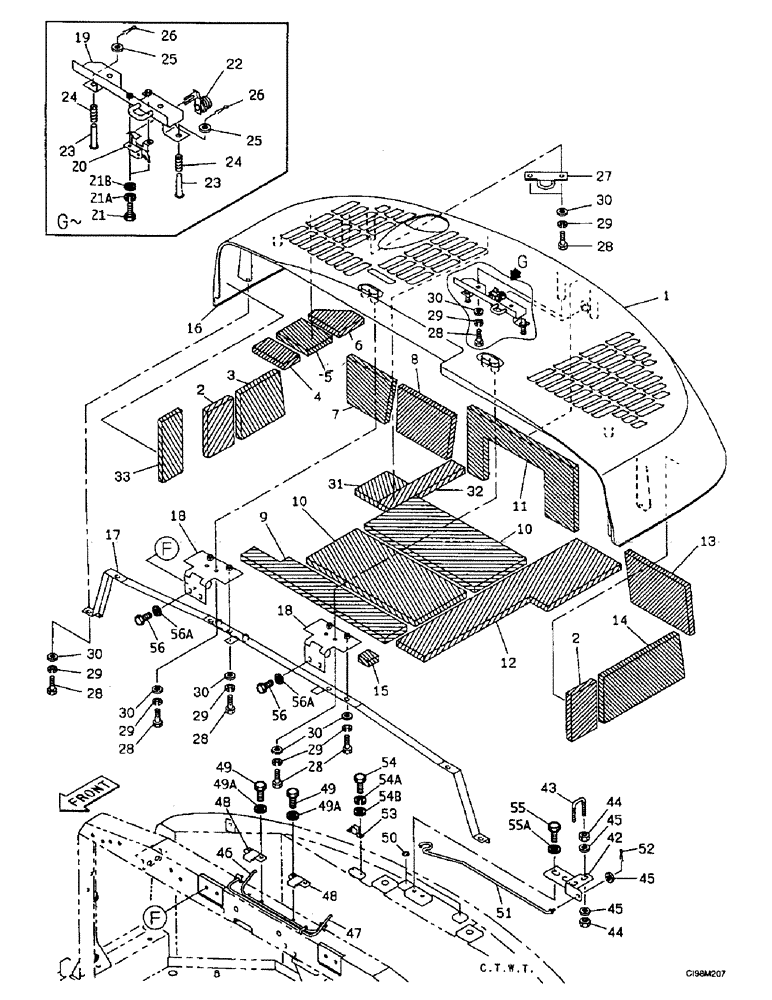

Запчасти Case 9007B (9-12) - SOUNDPROOFING - HOOD, ENGINE (09) - CHASSIS

167812A1

HOOD ASSY.

Engine, Consists Of Ref. Numbers : 1-33

1шт.

1

167801A1

HOOD ASSY.

Engine

1шт.

2

167753A1

NOISE PROTECTION

Insulation

2шт.

3

167756A1

NOISE PROTECTION

Insulation

1шт.

4

167769A1

NOISE PROTECTION

Insulation

1шт.

5

167770A1

NOISE PROTECTION

Insulation

1шт.

6

167759A1

NOISE PROTECTION

Insulation

1шт.

7

167755A1

NOISE PROTECTION

Insulation

1шт.

8

167771A1

NOISE PROTECTION

Insulation

1шт.

9

167750A1

FOAM INSULATION

Insulation

1шт.

10

167749A1

NOISE PROTECTION

Insulation

2шт.

11

167765A1

NOISE PROTECTION

Insulation

1шт.

12

167751A1

FOAM INSULATION

Insulation

1шт.

13

167754A1

NOISE PROTECTION

Insulation

1шт.

14

167772A1

NOISE PROTECTION

Insulation

1шт.

15

168425A1

INSULATOR

Insulation

1шт.

16

167736A1

LINING

Seal

1шт.

17

167746A1

SUPPORT

1шт.

18

167731A1

HINGE

2шт.

19

167722A1

BRACKET

Support

1шт.

20

167720A1

LOCK

Latching Device

1шт.

21

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

21a

892-11006

LOCK WASHER,M6

2шт.

21b

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

22

167726A1

LOCK

Plate, Catch

1шт.

23

167186A1

HEADED PIN

Split

2шт.

24

167744A1

COMPRESSION SPRING

2шт.

25

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

26

160762A1

COTTER PIN

Split

2шт.

27

167741A1

BRACKET

Support

1шт.

28

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

16шт.

29

892-11010

LOCK WASHER,M10

16шт.

31

167779A1

NOISE PROTECTION

Insulation

1шт.

32

167780A1

NOISE PROTECTION

Insulation

1шт.

33

167782A1

NOISE PROTECTION

Insulation

1шт.

42

167724A1

BRACKET

Support

1шт.

43

167727A1

HOOK

Bail

1шт.

44

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

45

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

12шт.

46

167793A1

TORSION BAR

1шт.

47

167794A1

TORSION BAR

1шт.

48

167776A1

BRACKET

Support

2шт.

49a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

50

167816A1

PLATE

2шт.

51

167740A1

STAY

Stem

1шт.

52

153077A1

COTTER PIN

2шт.

53

167723A1

CLIP

1шт.

54

627-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

8шт.

54a

892-11006

LOCK WASHER,M6

8шт.

54b

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

55

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

55a

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

56

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

56a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

49

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.
