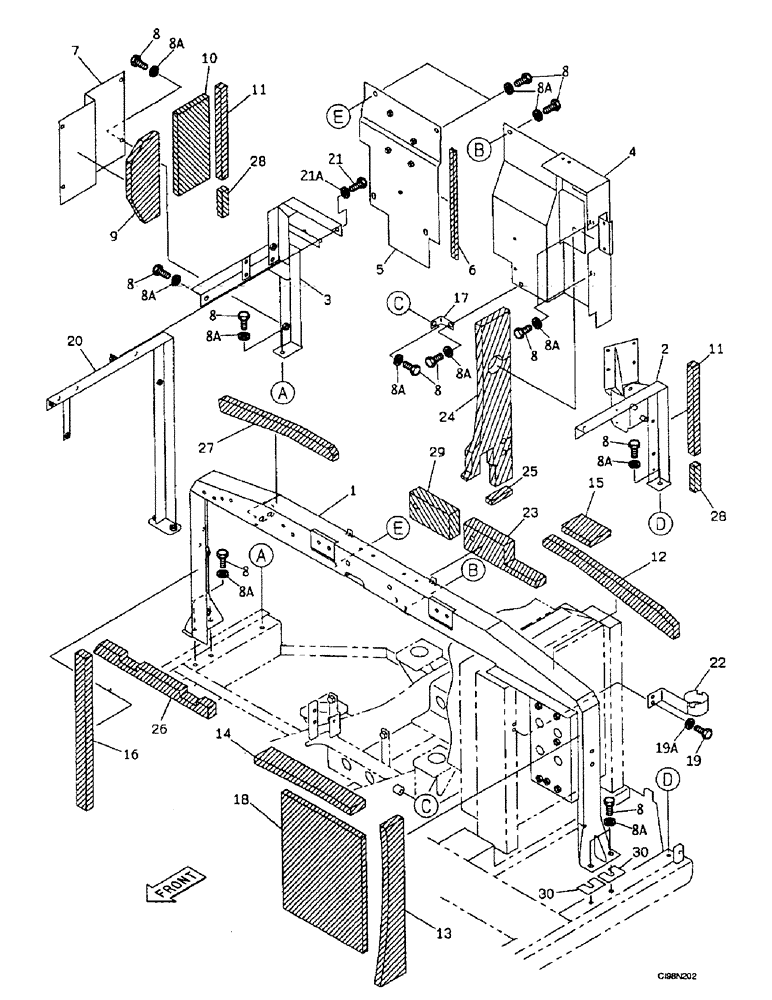

Запчасти Case 9007B (9-10) - SOUNDPROOFING - UPPERSTRUCTURE CHASSIS (09) - CHASSIS

1

167806A1

FRAME

1шт.

2

167808A1

FRAME

Mount

1шт.

3

167807A1

FRAME

Mount

1шт.

4

167800A1

FRAME

Mount

1шт.

5

167805A1

COVER

Sheet

1шт.

6

167758A1

LINING

Seal

1шт.

7

167767A1

COVER

Sheet

1шт.

8

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

25шт.

8a

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

25шт.

9

167764A1

NOISE PROTECTION

Insulation

1шт.

10

167763A1

NOISE PROTECTION

Insulation

1шт.

11

167761A1

NOISE PROTECTION

Insulation

2шт.

12

167738A1

FOAM INSULATION

Insulation

1шт.

13

167757A1

FOAM INSULATION

Insulation

1шт.

14

167743A1

FOAM INSULATION

Insulation

1шт.

15

167739A1

SEAL

Insulation

1шт.

16

167760A1

NOISE PROTECTION

Insulation

1шт.

17

167742A1

BRACKET

Support

1шт.

18

167786A1

NOISE PROTECTION

Insulation

1шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

19a

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

20

167809A1

FRAME

Mount

1шт.

21

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

21a

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

22

167768A1

HOLDER

Support

1шт.

23

167798A1

NOISE PROTECTION

Insulation

1шт.

24

167777A1

FOAM INSULATION

Insulation

1шт.

25

167778A1

FOAM INSULATION

Insulation

1шт.

26

167783A1

FOAM INSULATION

Insulation

1шт.

27

167781A1

SEAL

Insulation

1шт.

28

167792A1

FOAM INSULATION

Insulation

2шт.

29

167799A1

NOISE PROTECTION

Insulation

1шт.

30

150166A1

SHIM

Adjusting 0.80 mm (0,032 in)

2шт.
