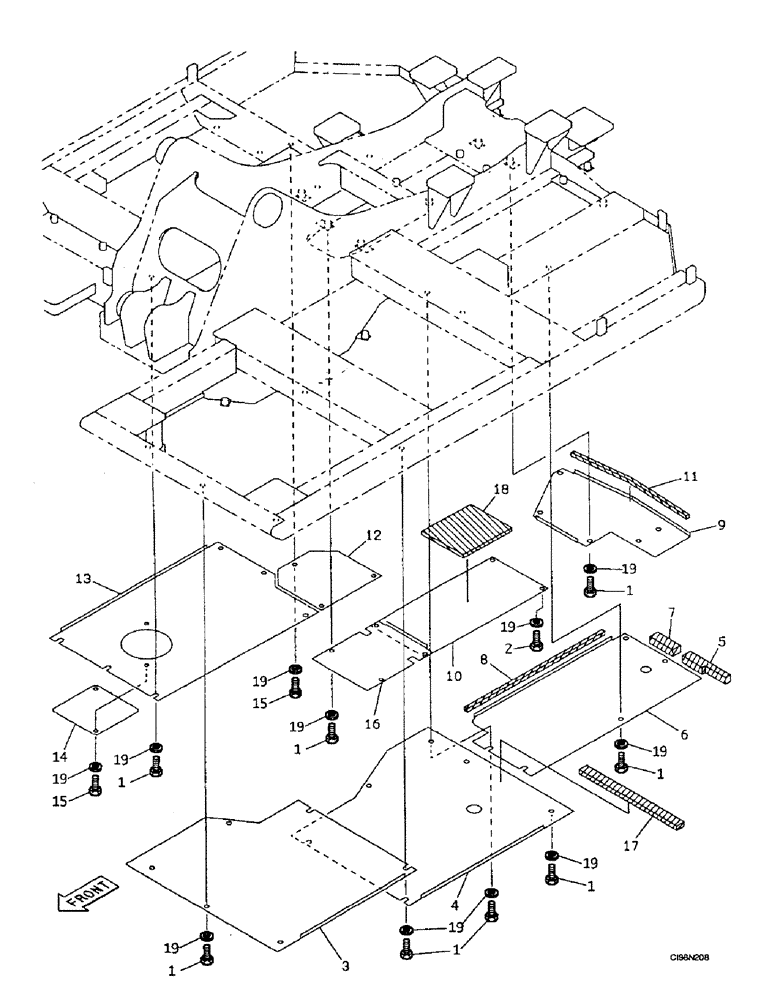

Запчасти Case 9007B (9-06) - LOWER LOCK - UPPERSTRUCTURE CHASSIS (09) - CHASSIS

1

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

24шт.

2

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

3

167209A1

COVER

Cover Sheet

1шт.

4

167208A1

COVER

Cover Sheet

1шт.

5

167204A1

SEAL

Insulation

1шт.

6

167212A1

COVER

Cover Sheet

1шт.

7

167203A1

SEAL

Insulation

1шт.

8

167205A1

SEAL

Insulation

1шт.

9

167200A1

COVER

Cover Sheet

1шт.

10

167210A1

COVER

Cover Sheet

1шт.

11

167202A1

SEAL

Insulation

1шт.

12

167199A1

COVER

Cover Sheet

1шт.

13

167207A1

COVER

Cover Sheet

1шт.

14

150222A1

COVER

Sheet

1шт.

15

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

5шт.

16

167201A1

COVER

Cover Sheet

1шт.

17

167206A1

SEAL

Insulation

1шт.

18

167211A1

NOISE PROTECTION

Insulation

1шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

33шт.
