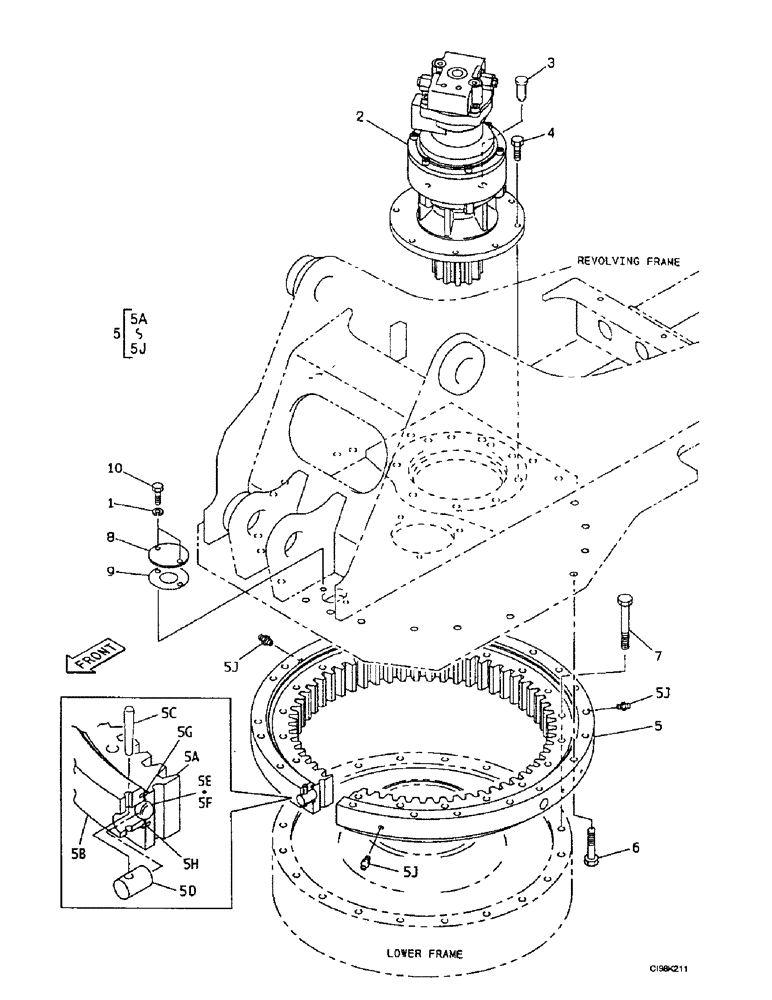

Запчасти Case 9007B (9-02) - SWING COMPONENTS (09) - CHASSIS

1

892-11012

LOCK WASHER,M12

2шт.

2

166333A1

MOTO-REDUCTION GEAR

See Figure : 6-8

1шт.

3

166332A1

PIN

Split

1шт.

4

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

7шт.

5

168222A1

RING GEAR

Ring, Slewing, Consists of: Ref. nos. 5A-5J

1шт.

5a

NSS

NOT SOLD SEPARAT

Ring, Slewing, Inner

1шт.

Part of Slewing Ring, P/N 168222A1

1шт.

5b

NSS

NOT SOLD SEPARAT

Ring, Slewing, External

1шт.

Part of Slewing Ring, P/N 168222A1

1шт.

5c

NSS

NOT SOLD SEPARAT

Pin

1шт.

Part of Slewing Ring, P/N 168222A1

1шт.

5d

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

Part of Slewing Ring, P/N 168222A1

1шт.

5e

150728A1

SPACER

62шт.

Part of Slewing Ring, P/N 168222A1

1шт.

5e

160706A1

SPACER

22шт.

Part of Slewing Ring, P/N 168222A1

1шт.

5f

150734A1

BALL

84шт.

Part of Slewing Ring, P/N 168222A1

1шт.

5g

166317A1

SEALING RING

1шт.

Part of Slewing Ring, P/N 168222A1

1шт.

5h

166318A1

SEALING RING

1шт.

Part of Slewing Ring, P/N 168222A1

1шт.

5j

153630A1

LUBE NIPPLE

Fitting, Grease

3шт.

Part of Slewing Ring, P/N 168222A1

1шт.

6

827-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

22шт.

7

827-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 10.9

20шт.

8

166320A1

LARGE PLATE

PLATE, LARGE

1шт.

9

166321A1

PACKING

Seal

1шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.
