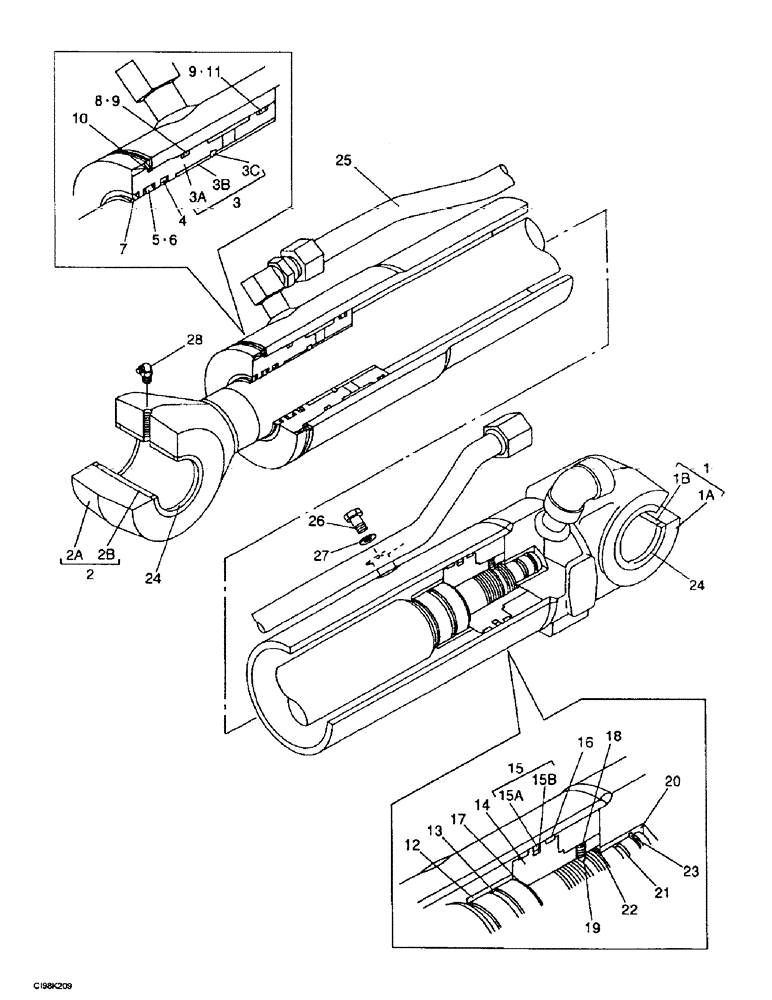

Запчасти Case 9007B (8-098) - DIPPER CYLINDER (08) - HYDRAULICS

166431A1

HYDRAULIC CYLINDER

Cylinder Assy, Consists of: Ref. nos. 1, 2, 3, 4-15, 16-28

1шт.

1

166931A1

PLASTIC-RUBBER TUBE

Tube, Consists of: Ref. nos. 1A, 1B

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

1a

NSS

NOT SOLD SEPARAT

Cylinder

1шт.

Part of Cylinder Tube, P/N 166931A1

1шт.

1b

166832A1

BUSHING

1шт.

Part of Cylinder Tube, P/N 166931A1

1шт.

2

166932A1

PISTON ROD

Consists of: Ref. nos. 2A, 2B

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

2a

NSS

NOT SOLD SEPARAT

Stem

1шт.

Part of Piston Rod, P/N 166932A1

1шт.

2b

166832A1

BUSHING

1шт.

Part of Piston Rod, P/N 166932A1

1шт.

3

166923A1

CYLINDER END CAP

Gland, Consists of: Ref. nos. 3A, 3B, 3C

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

3a

NSS

NOT SOLD SEPARAT

Gland, Cylinder

1шт.

Part of Cylinder Gland, P/N 166923A1

1шт.

3b

166829A1

BUSHING

1шт.

Part of Cylinder Gland, P/N 166923A1

1шт.

3c

166882A1

RING, SNAP

RING SNAP

1шт.

Part of Cylinder Gland, P/N 166923A1

1шт.

4

166787A1

SEALING RING

Seal

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

5

166788A1

RING

Seal, Special Mat

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

6

166808A1

BACK-UP RING

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

7

166796A1

WIPER SEAL

Wiper

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

8

154705A1

O-RING

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

9

160810A1

BACK-UP RING

3шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

10

154711A1

O-RING

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

11

154697A1

O-RING

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

12

166793A1

RING

Trim

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

13

166792A1

SEAL

Trim

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

14

166955A1

PISTON

Cylinder

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

15

160825A1

SEALING RING

SEALRING Seal Assy, Consists of: Ref. nos. 15A, 15B

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

15a

NSS

NOT SOLD SEPARAT

Seal

1шт.

Part of Seal Assembly, P/N 160825A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

15b

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of Seal Assembly, P/N 160825A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

16

166818A1

SLIDE

Trim

2шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

17

166889A1

SHIM

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

Part of Seals Package, P/N 166967A1

1шт.

18

156222A1

SCREW

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

19

155976A1

BALL

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

20

166795A1

RING

Seal

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

21

166794A1

SEAL

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

22

166888A1

RING, SNAP

RING SNAP

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

23

166887A1

STOP

Retainer

2шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

24

166798A1

WIPER SEAL

Wiper

4шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

25

166927A1

TUBE ASSY.

Pipe

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

26

167010A1

BOLT

Screw

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

27

167007A1

WASHER

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

28

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

Part of Cylinder Assembly, P/N 166431A1

1шт.

166967A1

SEAL KIT

Package, Seals, Consists of: Ref. nos. 4-11, 13, 15-17, 21

1шт.
