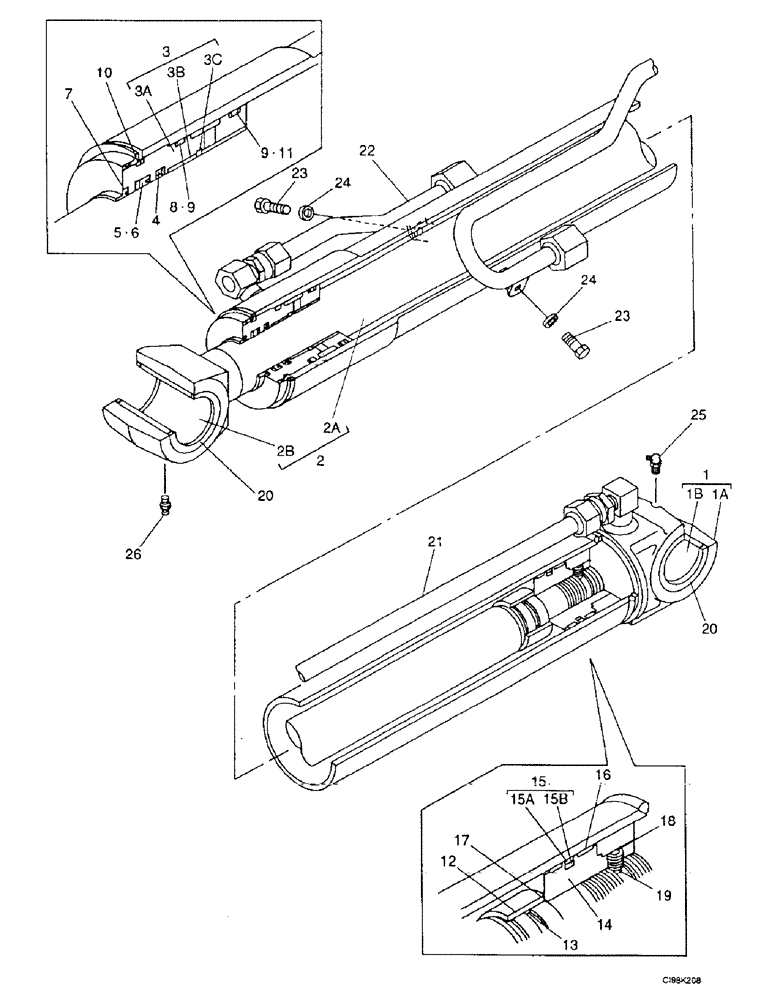

Запчасти Case 9007B (8-094) - BOOM CYLINDER (08) - HYDRAULICS

166430A1

HYDRAULIC CYLINDER

Consists of: Ref. nos. 1, 2, 3, 4-15, 16-26

1шт.

1

166929A1

HYD TUBE

Tube, Cylinder, Consists of: Ref. nos. 1A, 1B

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

1a

NSS

NOT SOLD SEPARAT

Cylinder

1шт.

Part of Cylinder Tube, P/N 166929A1

1шт.

1b

166831A1

BUSHING

1шт.

Part of Cylinder Tube, P/N 166929A1

1шт.

2

166930A1

PISTON ROD

Consists of: Ref. nos. 2A, 2B

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

2a

NSS

NOT SOLD SEPARAT

Stem

1шт.

Part of Piston Rod, P/N 166930A1

1шт.

2b

161031A1

BUSHING

1шт.

Part of Piston Rod, P/N 166930A1

1шт.

3

166922A1

CYLINDER END CAP

Gland, Consists of: Ref. nos. 3A, 3B, 3C

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

3a

NSS

NOT SOLD SEPARAT

Gland, Cylinder

1шт.

Part of Cylinder Gland, P/N 166922A1

1шт.

3b

166828A1

BUSHING

1шт.

Part of Cylinder Gland, P/N 166922A1

1шт.

3c

155698A1

RING, SNAP

RING SNAP

1шт.

Part of Cylinder Gland, P/N 166922A1

1шт.

4

155133A1

SEALING RING

Seal

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

Part of Seals Package, P/N 166966A1

1шт.

5

155129A1

RING

Seal, Special Mat

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

Part of Seals Package, P/N 166966A1

1шт.

6

155230A1

BACK-UP RING

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

Part of Seals Package, P/N 166966A1

1шт.

7

158035A1

WIPER SEAL

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

Part of Seals Package, P/N 166966A1

1шт.

8

154713A1

O-RING

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

Part of Seals Package, P/N 166966A1

1шт.

9

160809A1

BACK-UP RING

3шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

Part of Seals Package, P/N 166966A1

1шт.

10

154719A1

O-RING

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

Part of Seals Package, P/N 166966A1

1шт.

11

154705A1

O-RING

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

Part of Seals Package, P/N 166966A1

1шт.

12

166886A1

RING

Trim

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

13

166791A1

SEAL

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

Part of Seals Package, P/N 166966A1

1шт.

14

166957A1

PISTON

Cylinder

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

15

160823A1

SEALING RING

SEALRING Seal Assy, Consists of: ref. nos. 15A, 15B

1шт.

Part of Cylinder Assembly, P/N 166430A1

1шт.

Part of Seals Package, P/N 166966A1

1шт.

15a

NSS

NOT SOLD SEPARAT

Seal

1шт.

Part of Seal Assembly, P/N 160823A1

1шт.

15b

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

Part of Seal Assembly, P/N 160823A1

1шт.

16

166817A1

GUIDE RING

Trim

2шт.

Part of Seals Package, P/N 166966A1

1шт.

17

166884A1

SHIM

1шт.

Part of Seals Package, P/N 166966A1

1шт.

18

156222A1

SCREW

1шт.

19

155976A1

BALL

1шт.

20

164445A1

RING

Seal, Wiper

4шт.

21

166925A1

TUBE ASSY.

Pipe

1шт.

22

166926A1

TUBE ASSY.

Pipe

1шт.

23

167010A1

BOLT

Screw

2шт.

24

167007A1

WASHER

2шт.

25

153912A1

LUBE NIPPLE,90 Degree, 1/8"-27 NPT x 21.5mm lg

1шт.

26

153630A1

LUBE NIPPLE

Fitting, Grease

1шт.

166966A1

SEAL KIT

Package, Seals, Consists of: Ref. nos. 4-11, 13, 15, 16, 17

1шт.
