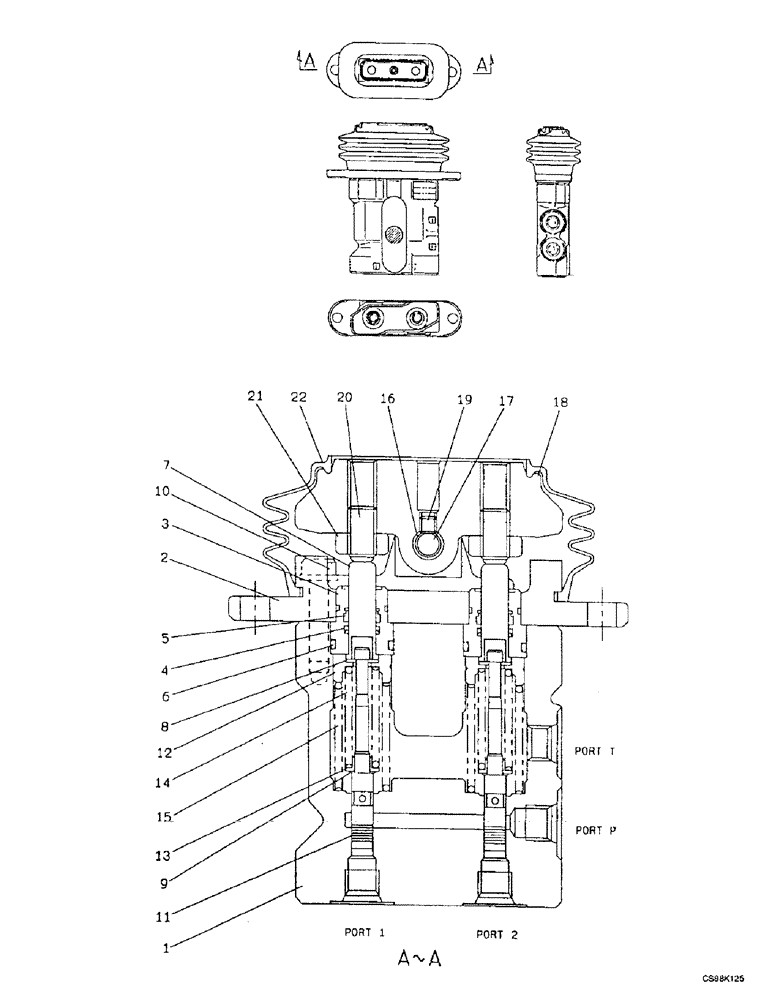

Запчасти Case 9007B (8-092) - CONTROL PEDAL - OPTIONAL, OPTIONAL, DOZER BLADE (08) - HYDRAULICS

166341A1

CONTROL BLOCK

Remote, Consists of: Ref. nos. 1-22

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

160308A1

COVER

Body

1шт.

3

160055A1

PLUG

2шт.

160130A1

SEAL KIT

Package, Consists of: ref. nos. 4, 5, 6

1шт.

4

155292A1

SEAL

Seal

4шт.

Part of Seals Package, P/N 160130A1

1шт.

5

160014A1

SCRAPER

Seal, Wiper

2шт.

Part of Seals Package, P/N 160130A1

1шт.

6

154491A1

O-RING

2шт.

Part of Seals Package, P/N 160130A1

1шт.

7

160023A1

THREADED ROD

Control

2шт.

8

LA00056

WASHER

; Replaces 160286A1

2шт.

9

160285A1

WASHER

2шт.

10

160284A1

BOLT,Hex Skt

Screw

2шт.

11

NSS

NOT SOLD SEPARAT

Spool

2шт.

12

160232A1

SPRING SEAT

2шт.

13

160283A1

WASHER

2шт.

14

166977A1

SPRING

2шт.

15

160250A1

SPRING

2шт.

16

160035A1

BUSHING

2шт.

17

160022A1

SHAFT

Cam

1шт.

18

160090A1

CAM

1шт.

19

160071A1

SET SCREW

1шт.

20

160282A1

SCREW

2шт.

21

160281A1

LOCK NUT

Lock

2шт.

22

160001A1

BELLOWS

Boot

1шт.
